Smart Bio NexusBB-Radar · eSSL
eSSL · Boom barriers

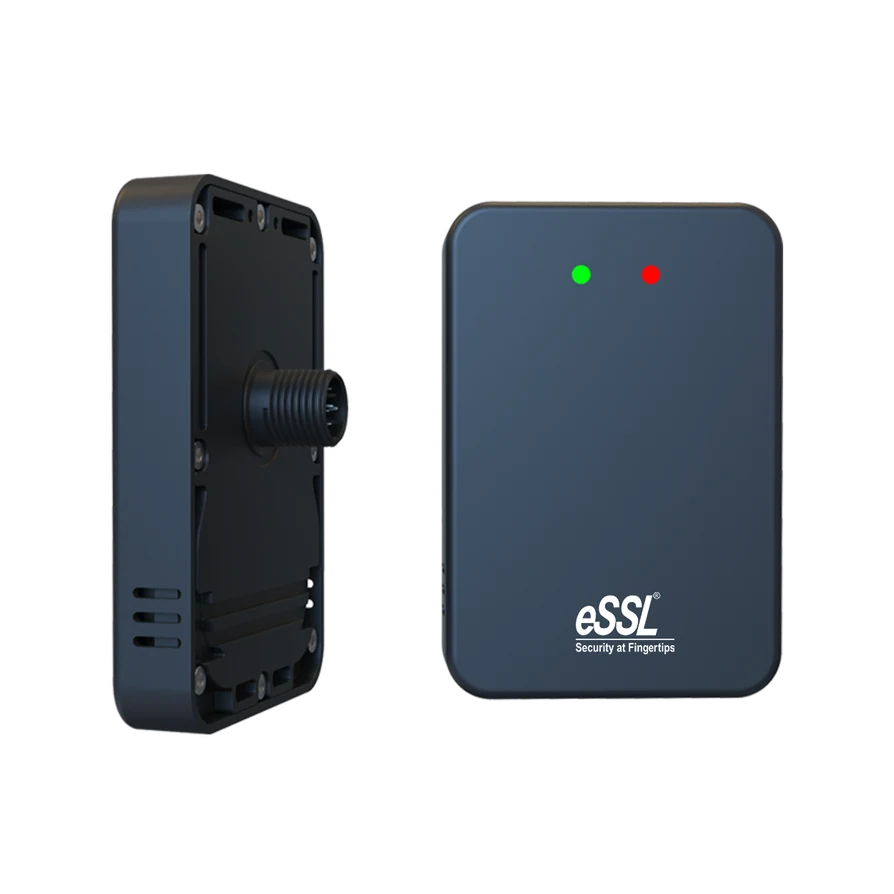

BB-Radar
Explore eSSL vehicle entry barriers and the accessories used for a complete installation.
- Detection Distance: 1-6M（default 3M）
- Detection Width: 0.5-1.5M (Right) /0.5-1.5m (Left）
- Working Frequency: 79GHz
- Supply Voltage: 9-24VDC/ (12VDC)/1A
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusDetection Distance: 1-6M（default 3M）
Detection Width: 0.5-1.5M (Right) /0.5-1.5m (Left）
Working Frequency: 79GHz
Supply Voltage: 9-24VDC/ (12VDC)/1A
Manufacturer details
Published product details.
Technical Specifications
| Detection Distance | 1-6M（default 3M） |
|---|---|
| Detection Width | 0.5-1.5M (Right) /0.5-1.5m (Left） |
| Working Frequency | 79GHz |
| Supply Voltage | 9-24VDC/ (12VDC)/1A |
| Power Consumption | < 2.5W |
| Output Relay | NO/NC |
| Interface | Bluetooth/RS485 |
| Dimension | 107.9*73.6*17.2mm |
| Net weight | 140gms |
| Enclosure Rating | IP66 |
| Working Temperature | -40°C~85°C |
| Cable length | 1M |
Features
| All Ground | Adaptable to various grounds like sand, stone or snowy ground. |
|---|---|
| All Weather | Vehicle Detection Sensor applies the newest algorithm that can switch weather conditions automatically. |
| Stable Detection | The antenna pitch angle is narrow from ±15° to ±9°. The focused wave makes detection stable. |
| High Protection | High waterproof and dust proof level that can be used under various situations. |
| Bluetooth Adjust | Support Bluetooth data adjust which is convenient and timely. |
- One-click Debugging & Upgrading
