Smart Bio NexusD330-33T-IP54 · eSSL
eSSL · Metal detectors

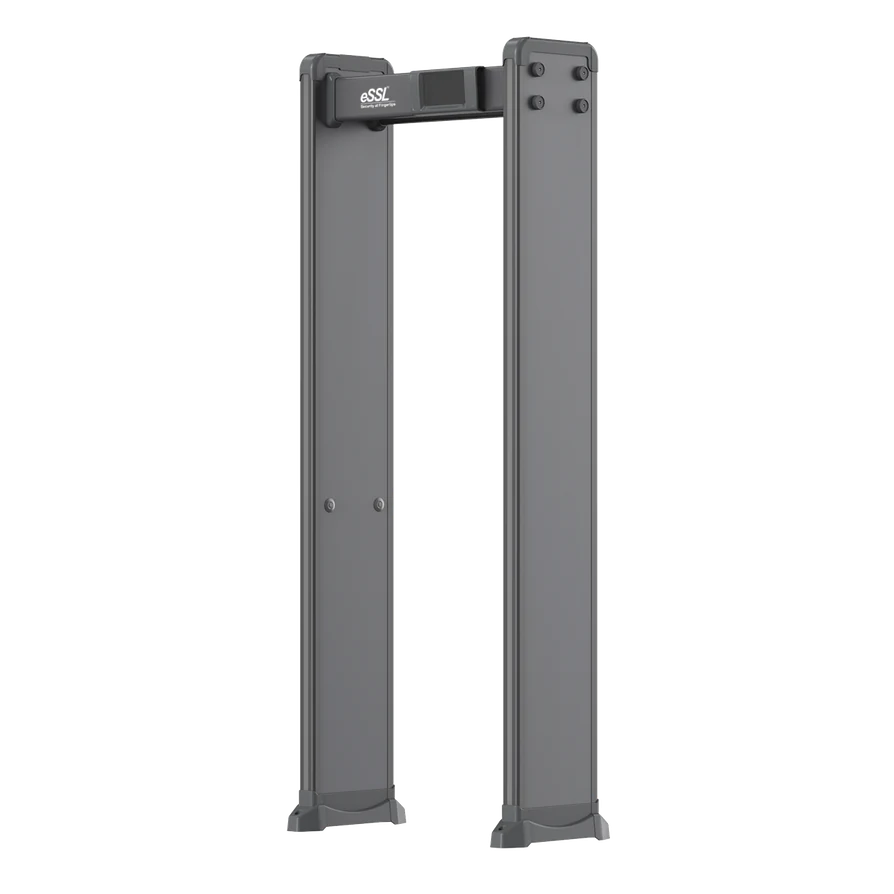

D330-33T-IP54
Explore eSSL walk-through and handheld detection products.
- Support Multi Zones by selecting 12/18/33 Zones
- 7 Inch LCD screen with a touchscreen feature
- It can be connected to Entrance Automation Devices Turnstile, Flap Barrier, Swing Barrier
- External lithium battery can be connected to the DFMD controller
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusSupport Multi Zones by selecting 12/18/33 Zones
7 Inch LCD screen with a touchscreen feature
It can be connected to Entrance Automation Devices Turnstile, Flap Barrier, Swing Barrier
External lithium battery can be connected to the DFMD controller
Has a low Magnetic Field Technology
Manufacturer details
Published product details.
Technical Specifications
| Working principle | Electromagnetic |
|---|---|
| Materials | ABS (Acrylonitrile Butadiene styrene) raw materials |
| Display | 7 Inch LCD Touchscreen |
| Operating Frequency | 1-100 |
| Security Level | 1-100 |
| Sensitivity Level | 0-255 |
| Sensitivity adjustable | 0 - 400 |
| Volume adjustable | 0 - 50 |
| Alarm volume | 0 - 20 |
| Alarm Sound | 1-16 |
| Screen Brightness | 10-100 |
| Screen Sleep Time | 1-60 Minutes |
| Time Setting | Yes |
| Working Humidity | 99%, non-condensing |
| Working Temperature | -20°C ~ 65°C |
| Input | AC 100 V-240 V/ Frequency 50HZ-60HZ |
| Power Consumption | 12W |
| Product Colour | Matte Black |
| IP rating | IP54 |
| Net Weight | 33 Kg |
| Gross Weight | 39Kg |
| External Size | 2191x875x446mm |
| Passage Size | 2007*720*446mm |
| Package Size | 2290x625x190mm (L*W*H) |
| Packaging | Carton Box |
| Detection | Ferrous metals < 75gm |
| Distance between Walls | Keep ≥100 mm from the wall (Anti-Interference) |
| Distance between 2 DFMD | Keep ≥500 mm between two units (Anti-Interference) |
| Distance between Machines | Keep> 800 mm from the X-Ray machine |
| DFMD Installation Area | Width 1000 mm & Length 2000 mm (minimum range without metallic surroundings) |
| Front Side LED Alarm Bars | Front Right Side door & Front Left Side door |
| Alarm Tones | 15 different tones |
| Detection of metal | Thickness 2mm, length 50mm, Width 20mm |
| Pass Count | 0-999999 |
| Alarm Count | 0-999999 |
| Net Count | 0-999999 |
| Return Pass Count | 0-999999 |
| Return Alarm Count | 0-999999 |
| Password | 8-digit password protection |
Features
| Simple installation | 2 doors (R & L), cross beam with wire probe. |
|---|
- Support Multi Zones by selecting 12/18/33 Zones
- 7 Inch LCD screen with a touchscreen feature
- It can be connected to Entrance Automation Devices Turnstile, Flap Barrier, Swing Barrier
- External lithium battery can be connected to the DFMD controller
- Has a low Magnetic Field Technology
- Ergonomic structure, new design
- High bright new LED digital with zones display
- Easy fixing of cross beams with the side door
- Helps in the detection of prohibited items
- Infrared sensor for pass count & alarm count
- Infrared Start-Stop Setting, we can enable/ disable First set of IR sensors or the Second set of IR sensors & off the both sets of IR sensors.
- Simultaneous detection of metals in multiple zones observed visually in 2 detection zones with an alarm
- EMC electromagnetic radiation standards and adopt weak magnetic field technology, harmless to pacemaker wearers, pregnant women, floppy disks, film and video tapes
Product information: eSSL manufacturer reference.
