Smart Bio NexusD518-63-IP65 · eSSL
eSSL · Metal detectors

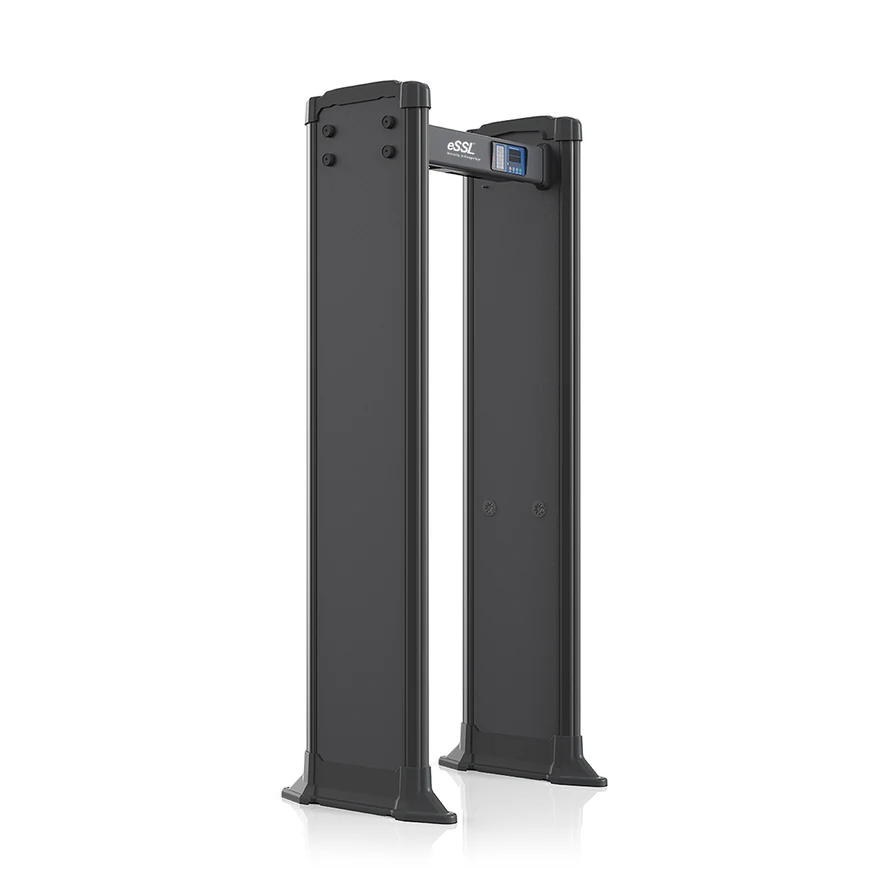

D518-63-IP65
Explore eSSL walk-through and handheld detection products.
- Support Multi Zones by selecting 21/42/63 Zones
- High bright new LED digital with zones display
- Easy fixing of cross beams with side door DFMD controller
- Infrared sensor for pass count & alarm count
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusSupport Multi Zones by selecting 21/42/63 Zones
High bright new LED digital with zones display
Easy fixing of cross beams with side door DFMD controller
Infrared sensor for pass count & alarm count
Simple installation 2 doors (R & L), cross beam with wire probe
Manufacturer details
Published product details.
Technical Specifications
| Working principle | Electromagnetic |
|---|---|
| Materials | ABS (Acrylonitrile Butadiene styrene) raw materials |
| Frequencies | 0-99 |
| Net weight | 48 KG |
| Gross weight | 56 KG |
| External size | 2249x932x715mm |
| Passage size | 1987x720x715mm |
| Detection | Ferrous metals < 75 gm |
| Distance between 2 DFMD | 850mm |
| Working humidity | 99%, non-condensing |
| Working temperature | -20°C-65°C |
| Input | AC 100 V-240 V/ Frequency 50HZ-60HZ |
| Product colour | Matte Black |
| IP rating | IP65 |
| Sensitivity adjustable | 0 - 400 |
| Volume adjustable | 0 - 50 |
| Alarm volume | 0 - 3 sec |
| Alarm tones | 15 different tone |
| Detection of metal | Thickness 2mm, length 50mm, Width 20mm |
Features
- Support Multi Zones by selecting 21/42/63 Zones
- The sensitivity of the Door can be adjusted between specific doors Right/Left, Reset of pass Alarm Counts, Manual Calibration
- 5 Digit 7 Segment Bright Digital LED display* Integration of Entrance Automation Devices ( Turnstile, Flap /Swing Barrier) through Access Controller of IOT board that blocks person with any Prohibited Items (Optional)
- Has a low Magnetic Field Technology
- Ergonomic structure new design
- High bright new LED digital with zones display
- Easy fixing of cross beams with side door DFMD controller
- Helps in detection of prohibited items
- Infrared sensor for pass count & alarm count
- Simple installation 2 doors (R & L), cross beam with wire probe.
Product information: eSSL manufacturer reference.
