Smart Bio NexusEML600-8-FGD-Bracket · eSSL
eSSL · EM locks & buttons

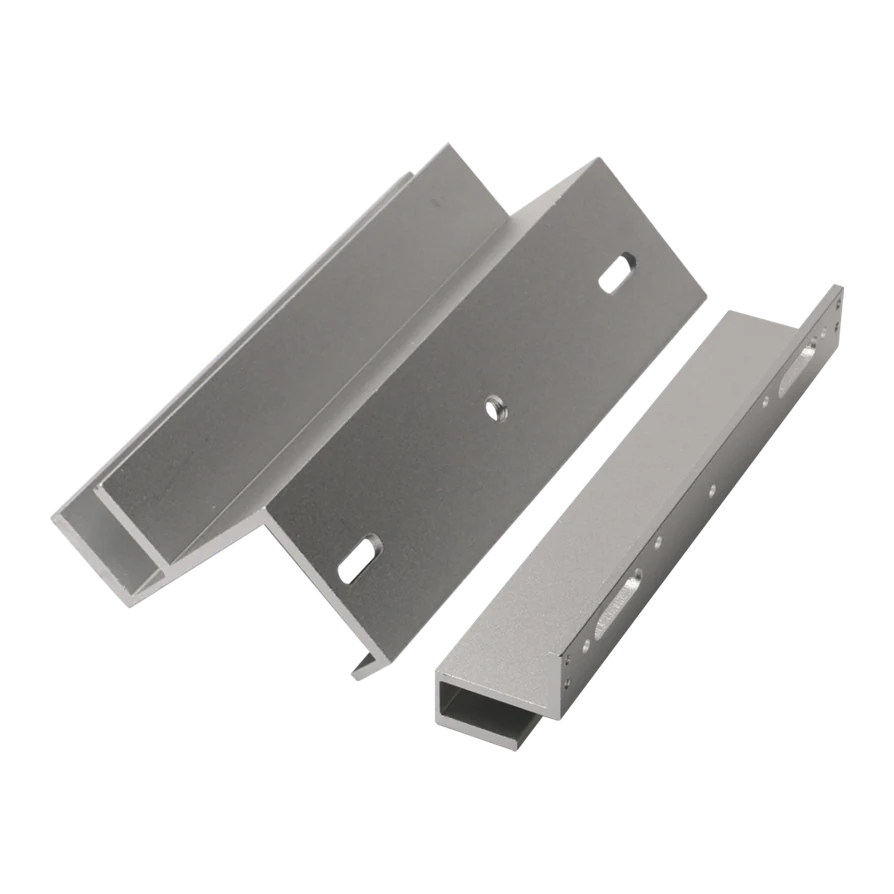

EML600-8-FGD-Bracket
Explore eSSL electromagnetic locks, exit buttons, brackets and door release accessories.
- Description: UL-style (or top-and-bottom) bracket set for frameless glass doors
- Suitable glass thickness: 8–16 mm
- Magnetic lock mounting hole spacing: 10 mm [Hole Pitch: The center-to-center distance between the mounting screw holes is exactly 10 mm]
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusDescription: UL-style (or top-and-bottom) bracket set for frameless glass doors
Suitable glass thickness: 8–16 mm
Magnetic lock mounting hole spacing: 10 mm [Hole Pitch: The center-to-center distance between the mounting screw holes is exactly 10 mm]
Manufacturer details
Published product details.
Technical Specifications
| Description | UL-style (or top-and-bottom) bracket set for frameless glass doors. |
|---|---|
| Suitable glass thickness | 8–16 mm |
| Required door gap | more than 5 mm [Clearance: A minimum gap of 5 mm is strictly required between the door and the frame (or between double door panels)] |
| Material thickness | 2 mm |
| Magnetic lock mounting hole spacing | 10 mm [Hole Pitch: The center-to-center distance between the mounting screw holes is exactly 10 mm] |
Left Bracket : Upper Glass Header Clamp
| Total Length | 190 mm |
|---|---|
| Base Width | 53 mm |
| Total Height | 46 mm |
| U-Channel Outer Width | 28 mm |
| U-Channel Inner Opening | 16 mm (Fits 8–16 mm glass with padding) |
Right Bracket : Armature Plate / Lower Door Clamp
| Total Length | 250 mm |
|---|---|
| Armature Face Length | 197 mm |
| Base Profile Width | 32 mm |
| Total Bracket Height | 29 mm |
| U-Channel Outer Width | 25 mm |
| U-Channel Inner Opening | 16 mm (Fits 8–16 mm glass with padding) |
Product information: eSSL manufacturer reference.
