Jupiter LAN only
Wired Ethernet connectivity for attendance and access control.
Enquire: LAN only

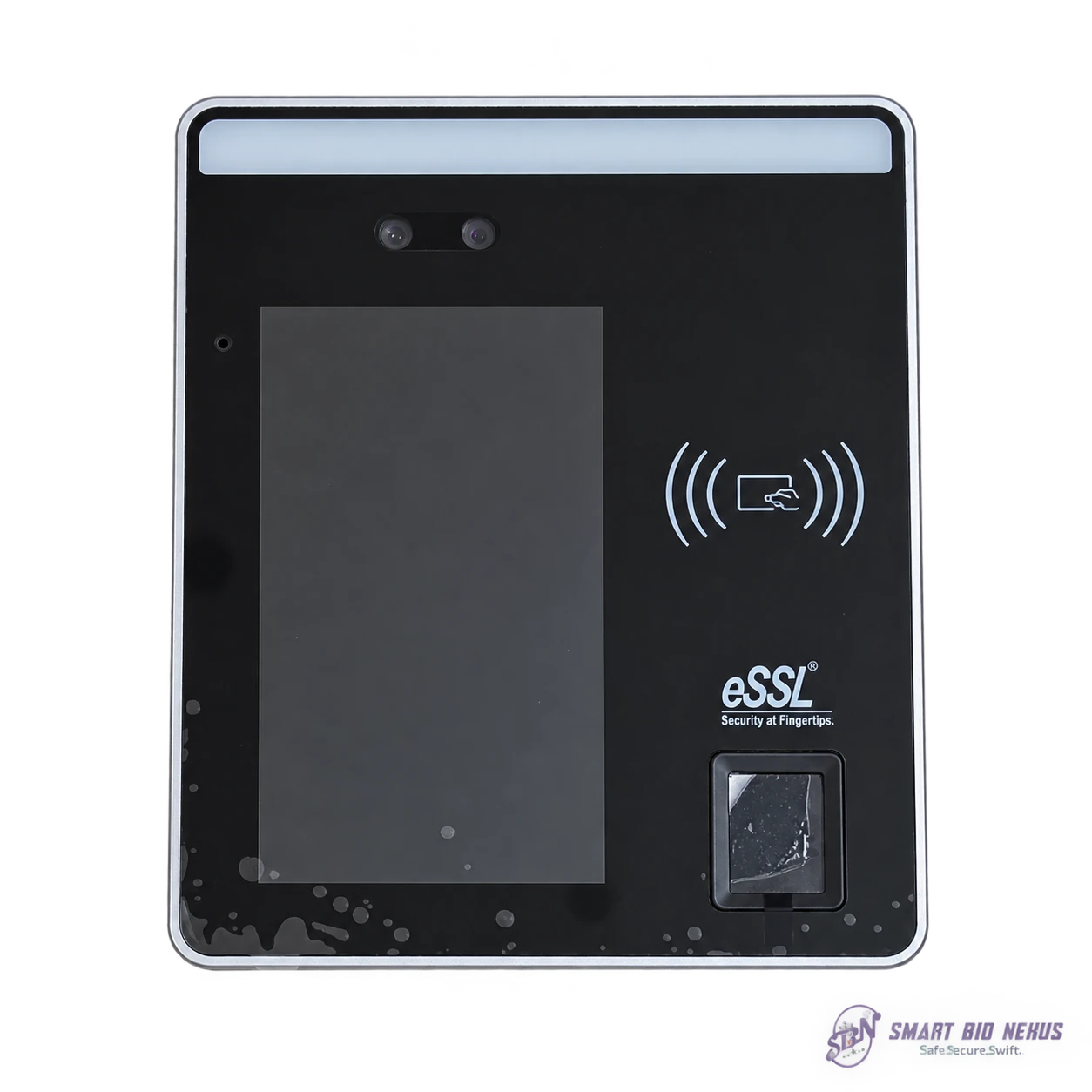

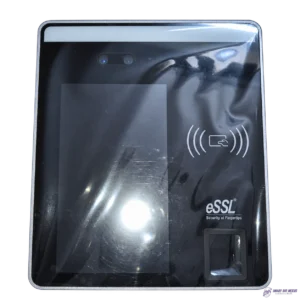

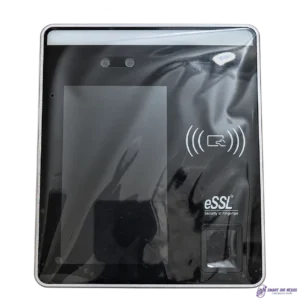

Smart Bio NexusFront view
10 product views · Select a thumbnail, then expand the photo.
eSSL · Attendance & access
AiFace Jupiter
Touchless recognition. A clear, 5-inch touchscreen.
Choose your connectivity.
Jupiter LAN + Wi-Fi
Wired Ethernet plus Wi-Fi connectivity for your installation.
Enquire: LAN + Wi-FiChoose the version in your enquiry. We’ll confirm the supplied configuration and installation scope in your quotation.
A face attendance and access control terminal with anti-spoofing protection and four ways to verify identity.
- 5-inch touchscreen
- 6,000 faces
- Recognition ≤1 second
- Anti-spoofing protection
Smart Bio Nexus · Authorised eSSL, ZKTeco, Biomax partner · Chennai
Configuration and optional features can be confirmed with your quote.
Product highlights
What makes it stand out.
Smart Bio Nexus5-inch touchscreen
6,000 faces
Recognition ≤1 second
Anti-spoofing protection
Face, fingerprint, card & password
Wi-Fi optional
From the product catalog
Technical specifications.
| Display | 5-inch touchscreen |
|---|---|
| Authentication | Face, fingerprint, card and password |
| Faces | 6,000 standard; 10,000 optional |
| Fingerprints | 6,000 |
| Cards | 10,000 |
| Transactions | 200,000 |
| Face recognition time | ≤1 second |
| Camera | 2MP WDR low-light camera |
| Processor | 900MHz dual core |
| Memory | 512MB RAM / 8GB flash |
| Operating system | Linux |
| Connectivity | TCP/IP; Wi-Fi optional; Wiegand input/output; RS485 |
| Card support | ID/EM card; 13.56MHz Mifare optional |

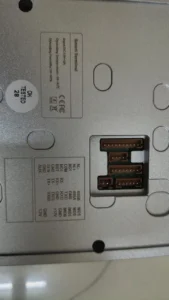

| Access interface | Electric lock, door sensor, exit button, alarm output and auxiliary input |

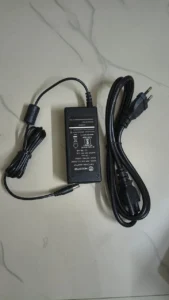

| Power | 12V 3A |
| Operating temperature | −10°C to 45°C |
| Humidity | 10–90% |
| Dimensions (W × H × D) | 134.93 × 166.93 × 21.5 mm |
| Software | eTimeTrackLite |
Specifications follow the supplied eSSL catalog. Optional configurations are marked.
Before you enquire
A few useful answers.
How can I get a quote?
Use the WhatsApp enquiry button and tell us the model, team size and installation requirement.
Can this device support door access?
Yes. The catalog lists door access interfaces for compatible locks, door sensors and exit buttons. Ask us to check the installation requirements for your site.
Is Wi-Fi included?
Wi-Fi is optional on AiFace Jupiter; confirm it when requesting a quote.

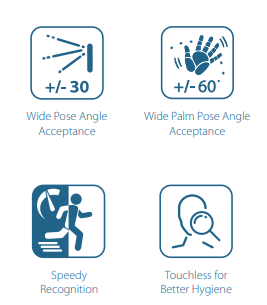

From the eSSL Jupiter brochure.
Verification modes and optional features depend on the supplied configuration; confirm these with your quotation.
