Smart Bio NexuseSSL LPR 100 · eSSL
eSSL · LPR systems

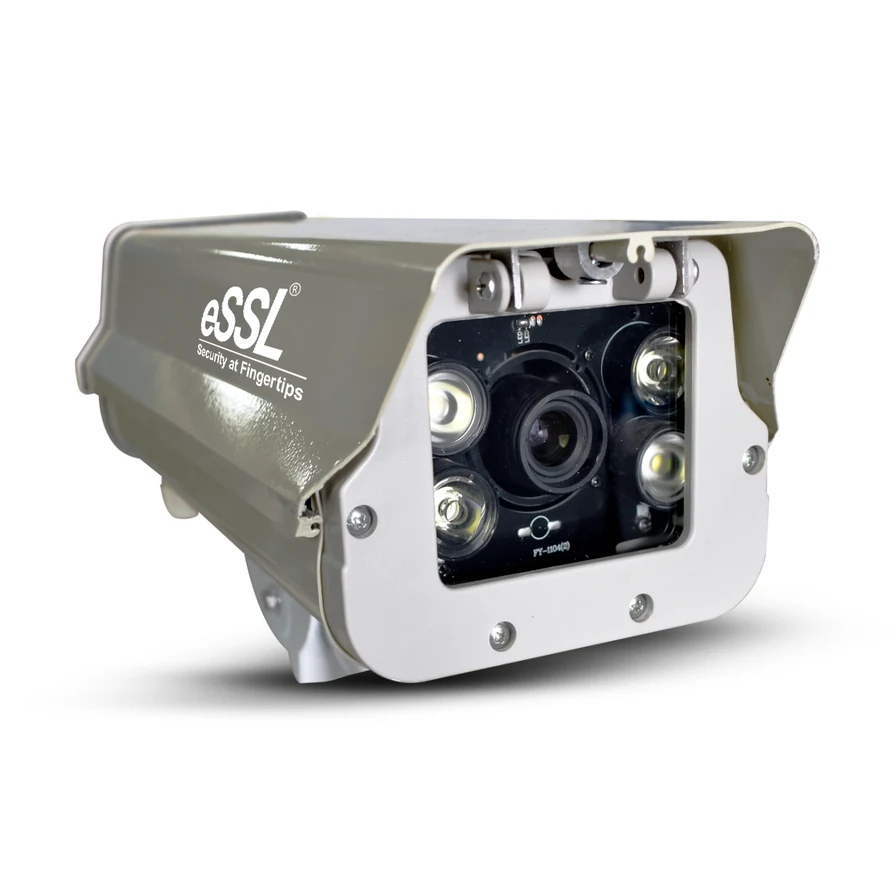

eSSL LPR 100
Explore eSSL licence plate recognition products.
- Resolution max : 2 MP
- Sensor : 1/2.8" 2 MP Exmor Progressive CMOS sensor
- Min. illumination : color:0.05 Lux at F1.2 / LED illuminator ON:0.001Lux at F1.2
- Frame rate : 25 FPS
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusResolution max : 2 MP
Sensor : 1/2.8" 2 MP Exmor Progressive CMOS sensor
Min. illumination : color:0.05 Lux at F1.2 / LED illuminator ON:0.001Lux at F1.2
Frame rate : 25 FPS
Manufacturer details
Published product details.
Camera
| Resolution max | 2 MP |
|---|---|
| Sensor | 1/2.8" 2 MP Exmor Progressive CMOS sensor |
| Min. illumination | color:0.05 Lux at F1.2 / LED illuminator ON:0.001Lux at F1.2 |
| Frame rate | 25 FPS |
| Lens | Varifocal from 6-22 |
| Shutter Speed | 1/3s to 1/100,000 s |
| Processor | 2.4GHz quad-core 64-bit CPU |
ANPR Algorithm
| Accuracy | Detection Rate >99.5% Recognition performance - 4 Wheeler >98% , 2 Wheeler >92% |
|---|---|
| Recognition Speed | 40 milliseconds |
| Vehicle Type identification | 4 wheeler and 2 wheeler |
| Vehicle Speed Limit | 15-25 KMPH (Dependent on camera mounting) |
| Detection Range | 5-10 meters |
| Lane Coverage | 4 meters |
- Number Plate Support :
- * Supports HSRP, non-HSRP, Two Wheeler, Bharat Series, Green, Red, Hand painted
- * Supports single-lined, two-lined, three-lined number plates
Dashboard Features
| Live View | Yes |
|---|---|
| Visitor Registration | 40 milliseconds |
| User Management | Allows to add different users with Permission Control |
| Uptime Display | Shows the total uptime of the system for a given period |
Data Management
| Whitelist and Blacklist | Real time reflection of entries in the database- Addition, Editing and Deleting of data. |
|---|---|
| Storage | 64 GB (Expandable upon request) |
| Bulk upload | Allows bulk upload of CSV/XLSX format |
| Owner Types | Addition of Multiple owner types - Residents, Tenants, vendors etc. |
General
| Relay output | 2 Channel relay output configurable for Barrier, Light and Siren control |
|---|---|
| Integration | Supports API, TCP and WebHook integration |
| Power supply | DC12V |
| Operating temperature | -10° C 50° C |
| Working Humidity | 90% or less (non-condensing) |
Product information: eSSL manufacturer reference.
