Smart Bio NexuseSSL9500 · eSSL
eSSL · Fingerprint devices

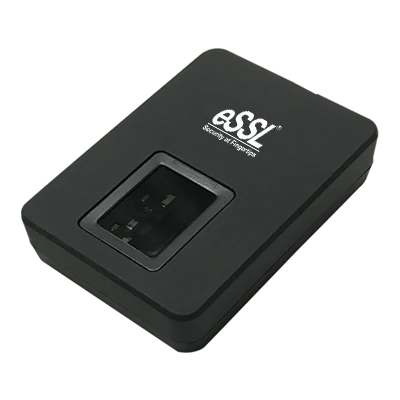

eSSL9500
Explore eSSL fingerprint devices and compare their storage, communication and software support.
- Scanner Type : Optical
- CPU : 280MHz DSP
- Flash : 32 MB
- SoC : RTOS {image out only}
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusScanner Type : Optical
CPU : 280MHz DSP
Flash : 32 MB
SoC : RTOS {image out only}
Manufacturer details
Published product details.
Technical Specifications
| Scanner Type | Optical |
|---|---|
| CPU | 280MHz DSP |
| Flash | 32 MB |
| SoC | RTOS {image out only} |
| Image Quality | 2-megapixel CMOS |
| Encrypted Fingerprint Data | Yes |
| Sunlight Operation | Must, dark field & automatic gain/exposure |
| Water Splash | No damage and normal operation is ensured Dry, Wet or Rough Fingerprints : Work well |
| Power Consumption | 5V:200mA scanning; 5V:60mA idle(waiting for finger) |
| Live Fingerprint Detection | Yes |
| LED | White |
| Product Certifications | FCC, CE, RoHS |
| Power Voltage | 5V |
| Power Current | 200mA |
| Communication | USB 2.0/USB1.1 |
| Interface Socket | USB Type A |
| Image Resolution | 500dpi |
| Effective Collecting Area | 15.24 * 20.32 mm (FAP20) |
| Collecting Area | 16.5 * 23 (mm) |
| Image Size | 300 * 400 pixels (FAP20) |
| Dimensions | 75 * 51* 19.5mm (L*W*H) |
| Image Formats | RAW, BMP, JPG |
| Algorithm | Finger V10.0 |
| Grayscale | 256 |
| Operating Environment | -20 °C ~ +50 °C; 90% r.h. |
Features
- - Stable Operation under strong light
- - Large fingerprint capture area and high image performance
- - Quick Recognition Of dry, wet and rough fingerprints
- - High Speed USB 2.0
- - Low Power Idle Mode
- - Available SDK for development
