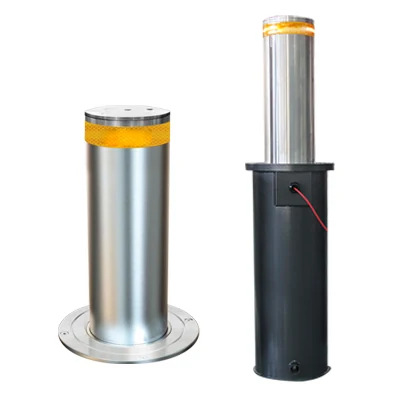

HB-426

Name: eSSL HB-426
Brand: eSSL

Explore eSSL bollard and vehicle entry control products.

Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.

Product highlights

A closer look at the features.

Smart Bio Nexus

Working power supply: AC220V

Drive mode: Electromechanical and hydraulic electrical integration

Working temperature: -30℃ ~ + 55℃

Protection class: IP68

Manufacturer details

Working power supply	AC220V
Drive mode	Electromechanical and hydraulic electrical integration
Working temperature	-30℃ ~ + 55℃
Protection class	IP68
Running speed	4S
Emergency mode	manual up and down/battery up and down (optional)
Maximum thrust	200Kg
Column height	600mm (customizable800mm to 1000mm)
Cylinder diameter	220mm (can be customized 270mm)
Column wall thickness	6, 8, 10mm
Cylinder material	304 stainless steel tube
Foundation box material	Q235
Anti-corrosion process	electrophoresis + plastic spraying
Maximum passing pressure	50T
Reflective warning	3M reflective film (50mm wide)
Warning light	LED lamp beads (standard configuration) anti-collision rubber coating + LED light strip (optional)

No of Bollards	6no
Input power	AC 220V
Output voltage	DC36V
Working temperature	-300~550
Remote control distance	≥50 meters
Control quantity	one for two/one for four/one for six
Control mode	remote control/manual button box/remote control
System interface	ground sense coil, infrared sensor, TCP/IP interface
