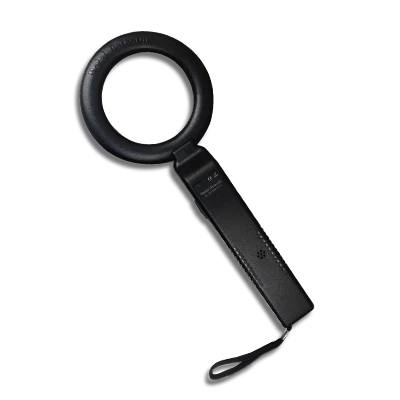

Smart Bio NexusHM300 · eSSL
eSSL · Metal detectors
HM300
Explore eSSL walk-through and handheld detection products.
- Product dimension: 340mm x 140mm x 30mm
- Package Size : 360mm * 150mm* 50 mm
- Working frequency : About 20 KHz
- Alarms : sound (or vibration) and light
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusProduct dimension: 340mm x 140mm x 30mm
Package Size : 360mm * 150mm* 50 mm
Working frequency : About 20 KHz
Alarms : sound (or vibration) and light
Power supply : Standard 9V battery or rechargeable battery(optional)
Manufacturer details
Published product details.
Technical Specifications
| Product dimension | 340mm x 140mm x 30mm |
|---|---|
| Package Size | 360mm * 150mm* 50 mm |
| Working frequency | About 20 KHz |
| Alarms | sound (or vibration) and light |
| Power supply | Standard 9V battery or rechargeable battery(optional) |
| Power | 270mW |
| Battery | 9V Alkaline Battery (Rechargeable Optional) |
| Operating Frequency | < 50mA |
| Operating Voltage | 7V – 9V |
| Operating Temperature | -10℃ to to +65℃ |
| Net Weight | 180gm |
- Only ferrous metals can be detected, no gold and silver detection<
Detection Range
- 1. Pin 35—70mm；
- 2. Type 64 pistol 220—250mm；
- 3. 6-inch dagger 200—240mm；
- 4. Diameter 20mm steel ball 150mm；
- 5. One ₹ coin 100—130 mm;
Main features
| 1). Detection distance | Pistol: 90mm; Six Inches knife: 60m; Razor blades: 30mm; Pin: 10mm |
|---|---|
| (2). Self-calibrating | digital microprocessor technology eliminates the need for periodic sensitivity adjustments. |
| (7). Colour LED indication | Green LED power ON indicator; Red LED LOW BATTERY indicator; Red LED ALARM indicator; Green LED RECHARGING indicator. |
| (9). Warranty | 12 months |
- (3). Rugged, high-impact ABS case with reinforced coil compartment.
- (4). Large 10cm scan surface for quick, thorough scanning.
- (5). No tools required to change standard 9V battery. Optional rechargeable battery kit
- (6). Sharp audible alarm and LED light vibration indicate the detection of metal.
- (8). Adjustable sensitivity knob.
Applications
- Airports and Seaports, subway, Railway, Bus Station, Electronic Factory, Post Office, Government Buildings, Exhibition hall, Embassy, Police Station, Court, Prisons/Jails, High-end occasion, Military Bases, Hospitals, Banks, Financial Institutions, Colleges and Schools, Hotels and Casinos, Power plants, Research Sites, Sports Stadiums, Public Transportation, Warehouses, Broadcast Studios, Museums, Night Clubs, Secret Meetings and VIP member Security, Gymnasium, Commercial buildings, Ships, Security checkpoints, office building
Product information: eSSL manufacturer reference.
