Choose the configuration.
Confirm the model and any optional features listed in the manufacturer catalog.

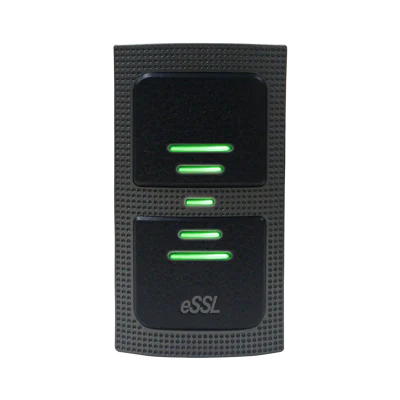

Smart Bio NexusKR500-M · eSSL
eSSL · RFID readers
KR500-M
Explore eSSL card readers and compare their card technologies and interfaces.
- KR500M : 125 KHz Proximity card reader
- Read Range : Up to 5CM
- Connectivity : Wiegand
- Reading Time (Card) : ≤200ms
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusKR500M : 125 KHz Proximity card reader
Read Range : Up to 5CM
Connectivity : Wiegand
Reading Time (Card) : ≤200ms
Power / Current : DC 6-14V / Max.70mA
Manufacturer details
Published product details.
Technical Specifications
| KR500M | 13.56 MHz Mifare card reader |
|---|---|
| Read Range | Up to 5CM |
| Connectivity | Wiegand |
| Reading Time (Card) | ≤200ms |
| Power / Current | DC 6-14V / Max.70mA |
| Input Port | 2ea (External LED Control) |
| Output Format | 26bit Wiegand (default) / 34bit Wiegand (default) |
| LED Indicator | 2 Color LED Indicators(Red and Green) |
| Beeper | Yes |
| Operating Temperature | -20° C to +65°C |
| Operating Humidity | 10% to 90% relative humidity non-condensing |
| Color | Black |
| Dimension(WxHxT) | 116 x 75 x 17.3mm/li> |
| Weight | 50g |
Product information: eSSL manufacturer reference.
Smart Bio Nexus · Chennai
Plan your installation.
Share your site requirements. We’ll help you check the product configuration, supporting accessories and setup.
Check the installation.
Discuss placement, power, connectivity and compatibility for your site.
Arrange support.
Ask Smart Bio Nexus about installation, configuration and ongoing service.
Explore the category
