Smart Bio NexusKR503-M · eSSL
eSSL · RFID readers

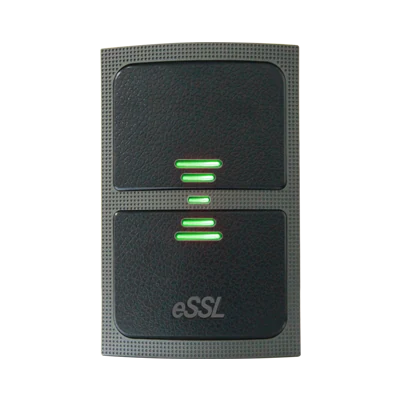

KR503-M
Explore eSSL card readers and compare their card technologies and interfaces.
- Mifare Card Reader
- Read Range : Up to 5CM
- Communication : RS485
- Reading Time (Card) : ≤300ms
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusMifare Card Reader
Read Range : Up to 5CM
Communication : RS485
Reading Time (Card) : ≤300ms
Power / Current : DC 6-14V / Max.70mA
Manufacturer details
Published product details.
Technical Specifications
| KR503M | 13.56MHz Mifare card reader |
|---|---|
| Read Range | Up to 5CM |
| Communication | RS485 |
| Reading Time (Card) | ≤300ms |
| Power / Current | DC 6-14V / Max.70mA |
| Input Port | 2ea (External LED Control, External Buzzer Control) |
| Output Format | 26bit Wiegand (default) / 34bit Wiegand (default) |
| LED Indicator | 2 Color LED Indicators(Red and Green) |
| Beeper | Yes |
| Operating Temperature | -20° C to +65°C |
| Operating Humidity | 10% to 90% relative humidity non-condensing |
| Color | Black |
| Dimension(WxHxT) | 116 x 75 x 17.3mm |
