Choose the configuration.
Confirm the model and any optional features listed in the manufacturer catalog.
Smart Bio NexusMA-46E · eSSL
eSSL · Mobile app devices

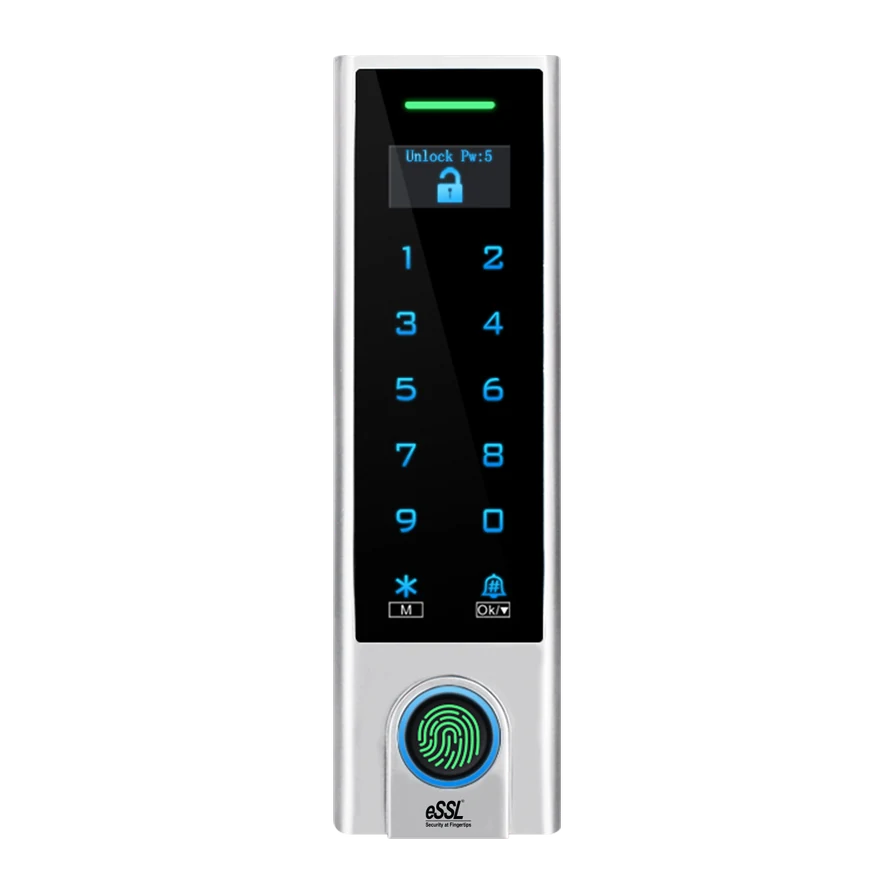

MA-46E
Explore eSSL devices and applications listed for mobile app use.
- Touch keypad, with OLED display
- WIFI
- Waterproof IP66
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusTouch keypad, with OLED display
WIFI
Waterproof IP66
Manufacturer details
Published product details.
User Capacity
| Hardware User | 10000 | APP User: 500 |
|---|---|
| Common Card/PIN User | 9988 |
| Common Fingerprint User | 500 (100, 800 optional) |
| Visitor User | 10 |
| Panic User | 2 |
| PIN Length | 4~6 digits |
Operating Voltage
| Idle Current | ≤ 60mA |
|---|---|
| Active Current | ≤ 150mA |
- 12~18V DC
Proximity Card Reader
| Radio Technology | 125KHz |
|---|
- EM
Relay
| Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
|---|---|
| Lock Output Load | 2 Amp Maximum |
- One (NO, NC, Common)
Wiring Connections
- Relay output, exit button, alarm, door contact, Wiegand input/output
Wiegand Interface
| EM card version | Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) |
|---|
PIN Output
| 4 bits, 8bits (ASCII),10 digits Virtual Number(Factory default | 4bits) |
|---|
Environment
| Color | Sliver & Black |
|---|---|
| Dimensions | L148 x W43.5 x H22 (mm) |
Physical: Zinc-Alloy
| Operating Temperature | 40°C ~ 60°C |
|---|---|
| Operating Humidity | 0%RH ~ 98%RH |
Features
| Card type | EM Card |
|---|
- Touch keypad, with OLED display
- WIFI
- Waterproof IP66
- Metal housing, anti-vandal
- Add / Delete users by APP
- Can set Time Restriction for users
- Temporary Password (One-time Or Period Code)
- Support checking Opening Record
MA 46E Features (via Tuya -SmartLife App)
- Devices can be seamlessly added to the Tuya (SmartLife) mobile app.
- User enrollment and deletion can be initiated directly through the app.
- OTP (One-Time Password) can be generated via the mobile app for secure access.
- Access logs can be monitored in real-time on the app.
- Remote unlocking is possible via mobile app.
- Doorbell notifications are received instantly through the app.
Product information: eSSL manufacturer reference.
