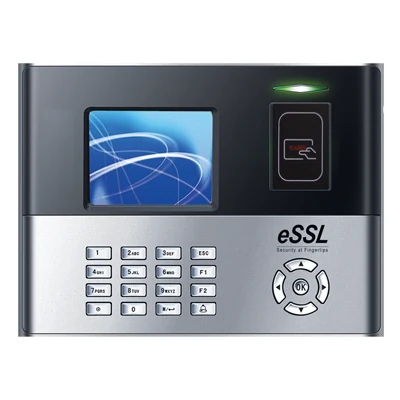

Smart Bio NexusS990 · eSSL
eSSL · RFID readers
S990
Explore eSSL card readers and compare their card technologies and interfaces.
- Card Storage : 30,000
- Transaction Capacity : 1,00,000
- Card reader : Yes
- CPU : 32 bit Microprocessor – 800Mhz
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusCard Storage : 30,000
Transaction Capacity : 1,00,000
Card reader : Yes
CPU : 32 bit Microprocessor – 800Mhz
FAR : <=0.0001% / FRR : <=1%
Manufacturer details
Published product details.
Technical Specifications
| Card Storage | 30,000 |
|---|---|
| Transaction Capacity | 1,00,000 |
| Card reader | Yes |
| CPU | 32 bit Microprocessor – 800Mhz |
| FAR | <=0.0001% / FRR : <=1% |
| Identification speed | < 1 sec |
| Algorithm Ver | N/A |
| Display | 2.8” TFT |
| Keypad | 4x4 with 5 Function Keys |
| Schedule Bell/Speaker | Mini Speaker |
Communication
| Standard features | work code,SMS,DLST, Self service query, Status Switch |
|---|---|
| Power Supply | 12V DC, 1.5 Amp |
| Operating Temperature | 0oC - 45oC |
| Operating Humidity | 20% - 80% |
| Dimension (in mm) | (L)210 x (W)157 x (H)40mm |
- TCP/IP, RS232/485
Access control
| Wiegand | In & Out both 26 or 34 bit (With or without site code) |
|---|---|
| Relay | 12 V relay for lock EM lock, Bolt Lock or Strike lock |
| Support Fire Alarm | Yes |
| Door Sensor | Yes |
| Anti Passback | Yes |
| Door Bell | Yes |
Exit Readers
| Support Exit Readers | KR500E / Exit Button, 101 HE |
|---|
Optional
| Battery | Yes |
|---|---|
| Card readers | Yes |
| Communication | WiFi/GPRS |
| Printer | Optional |
Compatibility
- - Compatible with Multi Door controllers via weigand
- - External Speaker output available (Optional)
- - External Bulb output available (Optional)
Compatible Software and SDK
- - etime track lite desktop & web
- - SDK for desktop applications
- - Web based Device Manager/ePush server using Push data.Helps developers & integrators
- - Supports 3rd Party Payroll/HRMS/ERP and Other applications
Product information: eSSL manufacturer reference.
