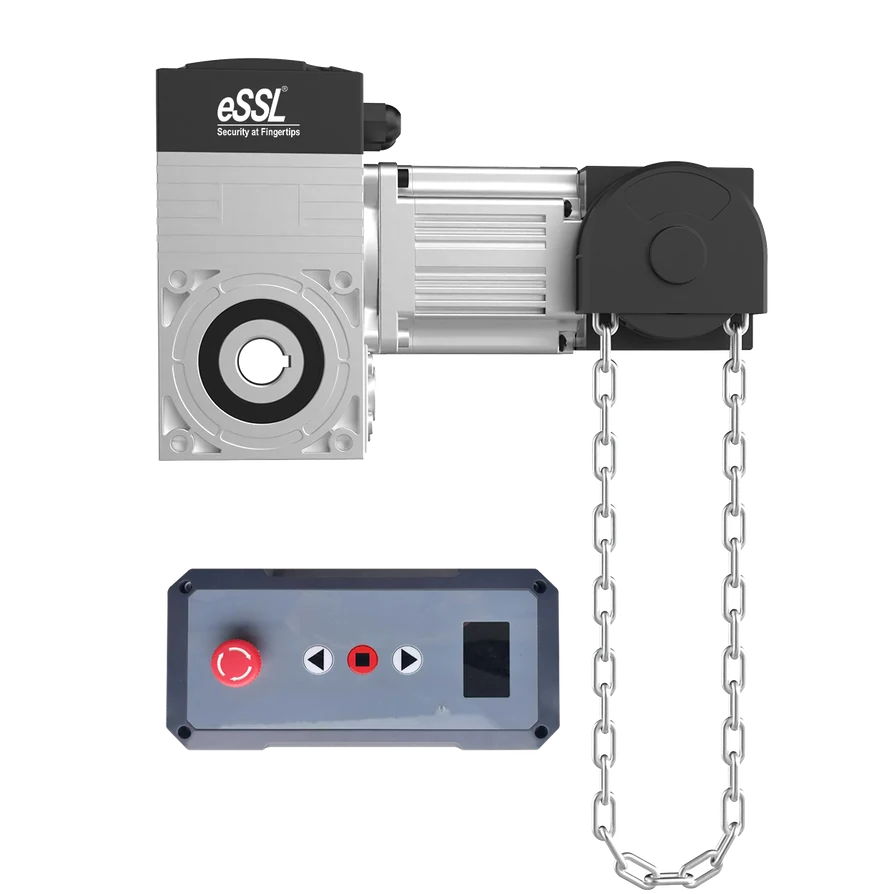

SH-GT16DC

Name: eSSL SH-GT16DC
Brand: eSSL

Explore eSSL shutter and garage door operators.

Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.

Product highlights

A closer look at the features.

Smart Bio Nexus

Working voltage, frequency: DC220V 50HZ

Motor power: 600W

Output torque: 120N·m

Working environment: -20℃~+50℃

Manufacturer details

Working voltage, frequency	DC220V 50HZ
Motor power	600W
Output torque	120N·m
Working environment	-20℃~+50℃
Continual working time	5min
Output shaft inner diameter	Φ25.4mm
Output speed	20~50r/min (Adjust speed is available）
Max cycle number of limit	18cycles
Model weight	12kgs
Door size	＜30㎡

220V DC brushless motor with advanced technology, excellent performance and reliable quality is adopted；
Using encoder limit, digital position detection, high precision switch position, convenient and accurate travel setting；
Hand pull to manually operate in emergent state like power failure；
Smart self-check and prompt, constantly protecting system security；
Protective devices such as air wave switch, infrared detection, and alarm lamp can be installed to enhance the anti-smashing protection function.；
Support control unit to open, close, stop, match with emergency button switch
