Smart Bio NexusU11-D · eSSL
eSSL · RFID readers

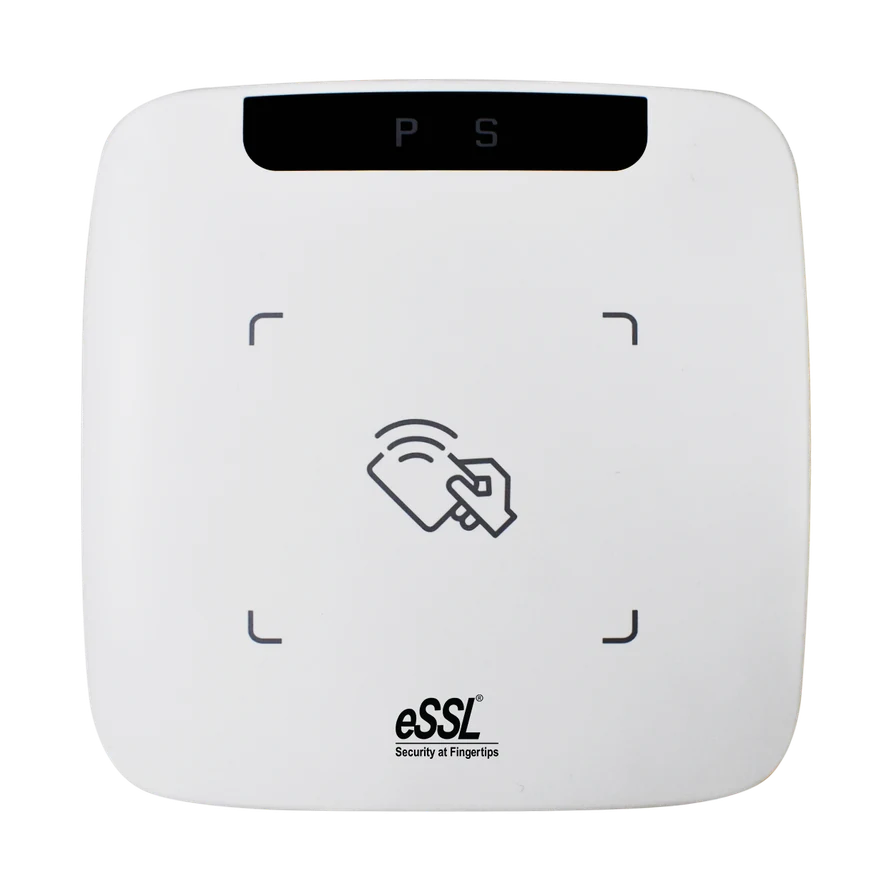

U11-D
Explore eSSL card readers and compare their card technologies and interfaces.
- Protocols : EPC Class 1 Gen 2（ISO18000-6C）
- Reading rate :> 50 tags/s
- Reading distance : -10dBi PCB(default) 2dBiCeramic antenna（option）
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusProtocols : EPC Class 1 Gen 2（ISO18000-6C）
Reading rate :> 50 tags/s
Reading distance : -10dBi PCB(default) 2dBiCeramic antenna（option）
Manufacturer details
Published product details.
Interfaces
| Antenna | Default -10dBi circularly polarized PCB antenna, optional 2dBi circularly polarized ceramic antenna |
|---|---|
| RSSI | < -75dBm |
| Frequency | It can be configured to meet the following regional frequency requirements : ETSI (EU) : 865–867 MHz OPEN (Custom) : 840–960 MHz (Can be customized according to user needs or local regulations) |
Interfaces
| Communication | USB2.0 communication/RS232 serial communication, baud rate: 115200 bps (default) |
|---|---|
| GPIO | 2in 2out |
| Work status | Power indicator light, card reading status indicator light, buzzer |
Power supply/Consumption
| DC power | USB power supply, or connect 5V(+/- 0.25V)power supply |
|---|---|
| Power consumption | Work :（Separate USB power supply, only allow maximum transmit power 27dBm to work） |
- 2.7W(27dBm)/3.6W(30dBm)
- Standby
- 0.25W
Parameter
| Dimension | 110mm×110mm×17mm Power supply/Consumption |
|---|
Environment
| Operating temperature | -10°C- +55°C |
|---|---|
| Storage temperature | -20°C- +60°C |
Performance
| Reading rate | > 50 tags/s |
|---|---|
| Reading distance | -10dBi PCB(default) 2dBiCeramic antenna（option） |
- 3cm - 60cm
- 10cm - 2.5m
- The write distance is about 50% of the read distance
Product information: eSSL manufacturer reference.
