Smart Bio NexusU12-I · eSSL
eSSL · RFID readers

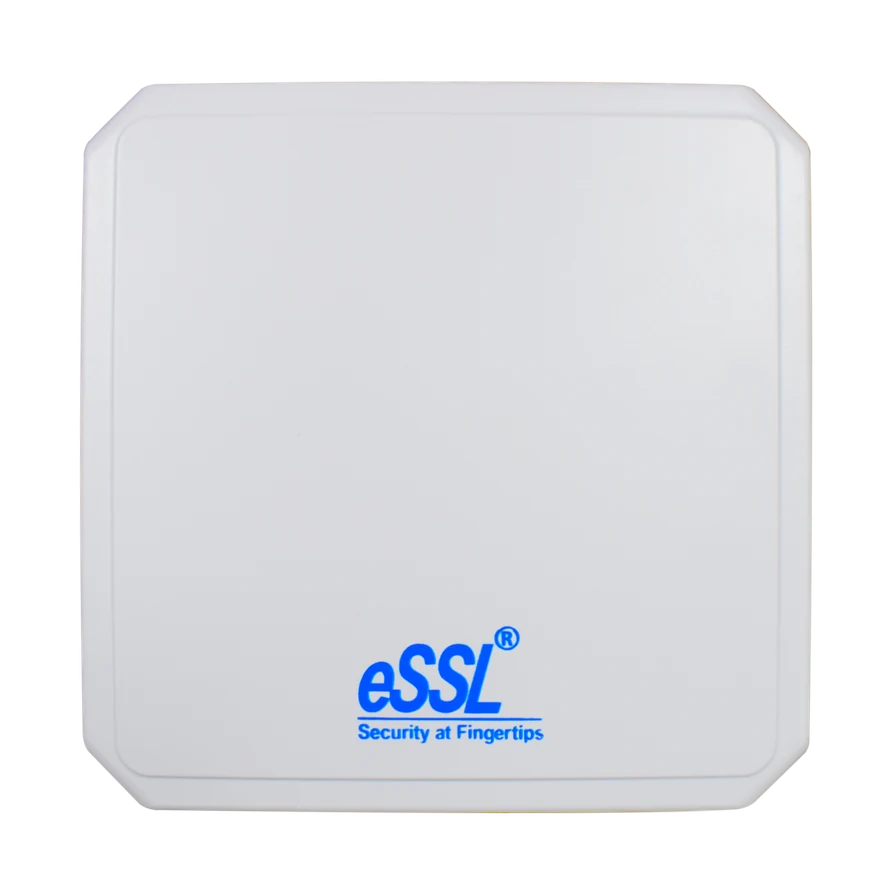

U12-I
Explore eSSL card readers and compare their card technologies and interfaces.
- Size : 258mm x258mm x 83mm
- Weight : 1.87kg
- Antenna Material : Aluminum
- Shield Material : PC+ABS
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusSize : 258mm x258mm x 83mm
Weight : 1.87kg
Antenna Material : Aluminum
Shield Material : PC+ABS
Manufacturer details
Published product details.
Physical features
| Size | 258mm x258mm x 83mm |
|---|---|
| Weight | 1.87kg |
| Antenna Material | Aluminum |
| Shield Material | PC+ABS |
| Protection Level | IP65 |
RF-Performance
| Inventory Peak Speed | >350 tags/s |
|---|---|
| Reading Distance | 12m |
| Tag Cache | 1000 pcs @96 bit EPC |
Interface
| Communication | Default：10/100 Base-T Ethernet，wiegand： Optional RS232 |
|---|---|
| GPIO | 4GPI, 4GPO(relay) |
| Buzzer | Built-in |
Power
| Voltage | DC, 12V/2A |
|---|---|
| Max. consumption | 6.75W（peak） |
| Standby consumption | 1.76W |
Environment Parameters
| Working Temp | -25°C ~ +65°C |
|---|---|
| Stock Temp | -40°C ~ +85°C |
| Humidity | 5 ~ 95% non- condensing (+25°C) |
| API | C, C#/.NET, Java |
Features
- New Generation IMPINJ E310 reader chip.
- 33dBm Radio frequency output.
- Build in 9 dBi antenna.
- IP65 protection level.
- Small size, industrial production lines, access control, logistics management, etc.
