Choose the configuration.
Confirm the model and any optional features listed in the manufacturer catalog.
Smart Bio NexusU14 UHF Reader · eSSL
eSSL · RFID readers

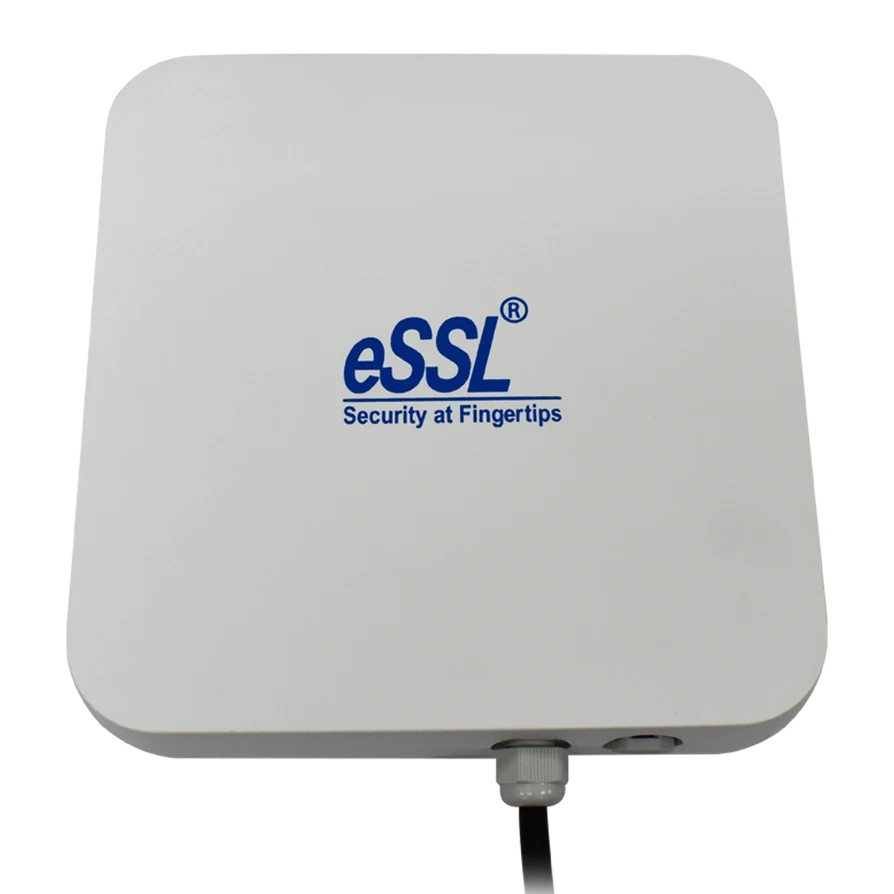

U14 UHF Reader
Explore eSSL card readers and compare their card technologies and interfaces.
- Dimensions (L×W×H) : 220mm*220mm*40mm）
- Protection Rating : IP66 / 67 (Dust-proof and Water-resistant)
- Air Protocol : EPC global Class 1 Gen 2 (ISO/IEC 18000-6C)
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusDimensions (L×W×H) : 220mm*220mm*40mm）
Protection Rating : IP66 / 67 (Dust-proof and Water-resistant)
Air Protocol : EPC global Class 1 Gen 2 (ISO/IEC 18000-6C)
Manufacturer details
Published product details.
Physical
| Dimensions (L×W×H) | 220mm*220mm*40mm |
|---|---|
| Protection Rating | IP66 / 67 (Dust-proof and Water-resistant) |
RFID
| Air Protocol | EPC global Class 1 Gen 2 (ISO/IEC 18000-6C) |
|---|---|
| Frequency Range | NA: 902-928MHz (FCC) |
| EU: 865-868MHz (ETSI) | |
| 860-960MHz Configurable | |
| Output Power | 5dBm~33dBm (±1dB) |
| Receiver Sensitivity | -80dBm@ 10%BER |
| Integrated Antenna | 8dBi Circular Polarized Antenna |
Performance Specifications
| Peak Tag Read Rate | Peak Tag Read Rate |
|---|---|
| Read Distance | Read Distance 0-12m |
| RSSI | Supportable |
Interfaces
| Standard Interfaces | RJ45 10/100M Ethernet |
|---|---|
| RS232, RS485, | |
| baud rate up to 460,800, the default 115200 N 8 1 | |
| Wiegand 26, 34,66 | |
| GPI | 2 x Input, 12~24V |
| GPO | 2 x Relay Output, |
Product information: eSSL manufacturer reference.
