Choose the configuration.
Confirm the model and any optional features listed in the manufacturer catalog.

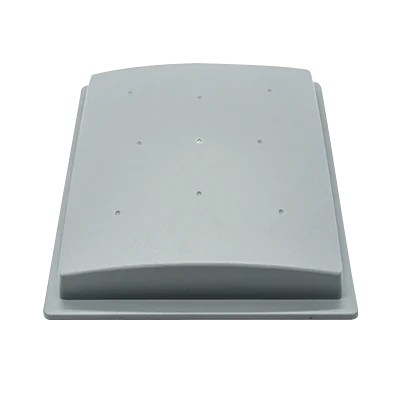

Smart Bio NexusU5 · eSSL
eSSL · RFID readers
U5
Explore eSSL card readers and compare their card technologies and interfaces.
- Protocol : ISO18000-6C,EPC G2
- RF power : 0～31dBm adjustable
- Sensitivity : -80dBm( 9dBi antenna more than 6m）
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusProtocol : ISO18000-6C,EPC G2
RF power : 0～31dBm adjustable
Sensitivity : -80dBm( 9dBi antenna more than 6m）
Manufacturer details
Published product details.
Technical Specifications
| Frequency | US(902～928MHz), China(920～925MHz), EU(865～868MHz), other frequency selectable |
|---|---|
| Protocol | ISO18000-6C,EPC G2 |
| RF power | 0～31dBm adjustable |
| Sensitivity | -80dBm( 9dBi antenna more than 6m） |
| Processor | ARM CORTEX M3 100M CPU |
| Memory | 16KB tag data memory and 32KB Nonvolatile storage |
| Data Interface | 100M Ethernet Interface RS232,RS485, Wiegand 26/34 1 set input and 1 set output（TTL),1 set relay |
| Power supply | DC+9V～+15V |
| Working temp | -20℃ ～ 60℃ |
| Dimension | 280 mm×280 mm×68.5 mm |
Product information: eSSL manufacturer reference.
Smart Bio Nexus · Chennai
Plan your installation.
Share your site requirements. We’ll help you check the product configuration, supporting accessories and setup.
Check the installation.
Discuss placement, power, connectivity and compatibility for your site.
Arrange support.
Ask Smart Bio Nexus about installation, configuration and ongoing service.
Explore the category
