Smart Bio NexusAI-FACE MAGNUM · eSSL
eSSL · Face recognition

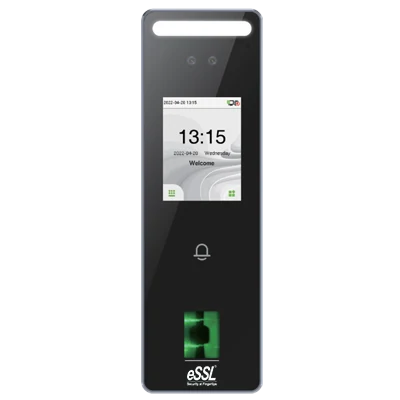

AI-FACE MAGNUM
Explore eSSL face recognition terminals and compare their verification methods, capacities and connectivity.
- · IP65 water and dust resistance
- · Operating temperature from -5°C to 45°C
- · Support Facial / Fingerprint / RFID
- · Available card modules :12.5 KHz ID card / 13.56MHz IC card
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio Nexus· IP65 water and dust resistance
· Operating temperature from -5°C to 45°C
· Support Facial / Fingerprint / RFID
· Available card modules :12.5 KHz ID card / 13.56MHz IC card
· Fill Light with adjustable brightness
· On Board Web Server for system configuration
Manufacturer details
Published product details.
Features
| · Available card modules | 12.5 KHz ID card / 13.56MHz IC card |
|---|
- · IP65 water and dust resistance
- · Operating temperature from -5°C to 45°C
- · Support Facial / Fingerprint / RFID
- · Fill Light with adjustable brightness
- · On Board Web Server for system configuration
Technical Specifications
| Face Capacity | 1500 |
|---|---|
| Fingerprint Capacity | 5000 |
| Card Capacity | 10,000 |
| Transaction Capacity | 200,000 |
| Display | 2.4-inch touch Screen |
| Facial Recognition Algorithm | eSSLFace 3.5 |
| Facial Recognition Speed | < 1s |
| Facial Recognition Distance | 0.5m to 2m |
| Communication | TCP/IP,WiFi(Optional),Wiegand Input/Output,RS485 |
| Operation System | Linux |
| Standard Functions | ADMS, DST, Camera, 14-digit User ID, Access Levels,Groups, Holidays, Anti passback, Record Query, Tamper Switch Alarm, Multiple Anti-Passback |
| Hardware | 1.2GHz Dual Core CPU, 256MB RAM/512MB Flash, 1MP Binocular Camera Adjustable LED Fill Light |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input |
| Power Supply | 12V 3A |
| Ingress Protection Rating | IP65 |
| Operating Temperature | -5°C to 45°C |
| Operating Humidity | 10% to 90% RH |
| Dimensions(L*W*D) | 185*58.5*20mm |
| Operating Temperature | -5°C to 45°C |
Product information: eSSL manufacturer reference.
