Smart Bio NexusBG-DC-101 · eSSL
eSSL · Boom barriers

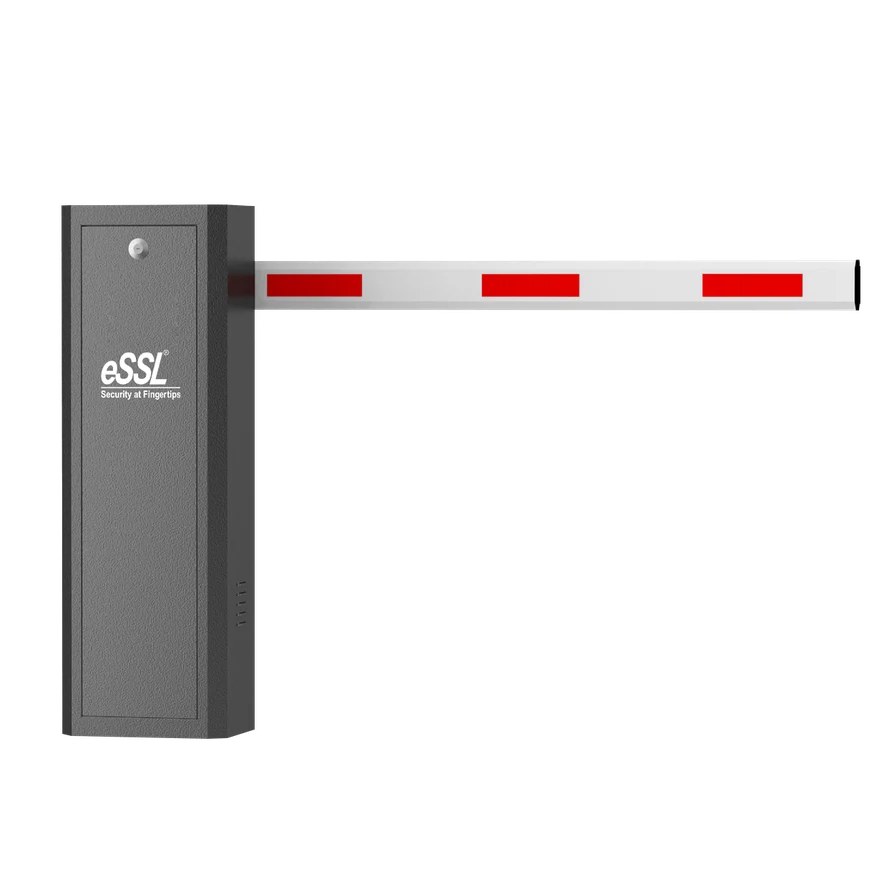

BG-DC-101
Explore eSSL vehicle entry barriers and the accessories used for a complete installation.
- Motor Type: 24Volt DC Brushless Motor
- Operational Type: Electromechanical
- Power Supply：220 Volts
- Frequency: 60Hz
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusMotor Type: 24Volt DC Brushless Motor
Operational Type: Electromechanical
Power Supply：220 Volts
Frequency: 60Hz
Manufacturer details
Published product details.
Technical Specifications
| Motor Type | 24Volt DC Brushless Motor |
|---|---|
| Operational Type | Electromechanical |
| Power Supply | 220 Volts |
| Frequency | 60Hz |
| Operational Voltage | 24 Volts DC |
| Max power Consumption | 120 W |
| Working Temperature | -35°C to 70°C |
| Boom Barrier Arm Length & Operating Speed | 6m (6s), 4m (3s), 3m (1.5s) |
| Boom Barrier Arm Type | 6Mts (3.6 Straight + 2.7 Extension) Telescopic Boom |
| Barrier Mechanism | Supported by 2 Springs |
| Environment humidity | 10%~90% (non-condensing) |
| IP class | IP54 |
| Working Temperature | -20°C to 80°C |
| Barrier Dimension | 348*248*1060 mm |
| Boom Barrier Weight | 45Kg |
| Boom Barrier Remote Range | 土 ≤20Mts |
| MCBF | 2Million |
Features
| Manual Lift and Lower | Equipped with a motorized hand wheel, the lever can be manually raised and lowered during a power outage |
|---|---|
| Ingenious Design | Utilises a sinusoidal mechanism and maintenance-free bearings to minimize wear & tear on components |
| Safe Use | The lever will not rapidly rise or fall. |
- 24V DC Brushless Motor drive, safe electrical, no risk of leakage.
- DC brushless mechanism, DC brushless motor, hull limit switch, operate stably, low sound, long lifetime.
- Operate speed at the fastest 1.2S, the speed adjustment is available, soft start and soft stop function, high efficiency pass.
- With reverse, auto-close, & auto-intelligent check functions are available.
- External Interface suitable device, loop detector, radar sensor, Photocell, Access Controller with UHF Readers & RS485 is optional.
- Cabinet is electrophoresis, then powder coating, for outdoor use.
Product information: eSSL manufacturer reference.
