Smart Bio NexusBG100 TI · eSSL
eSSL · Boom barriers

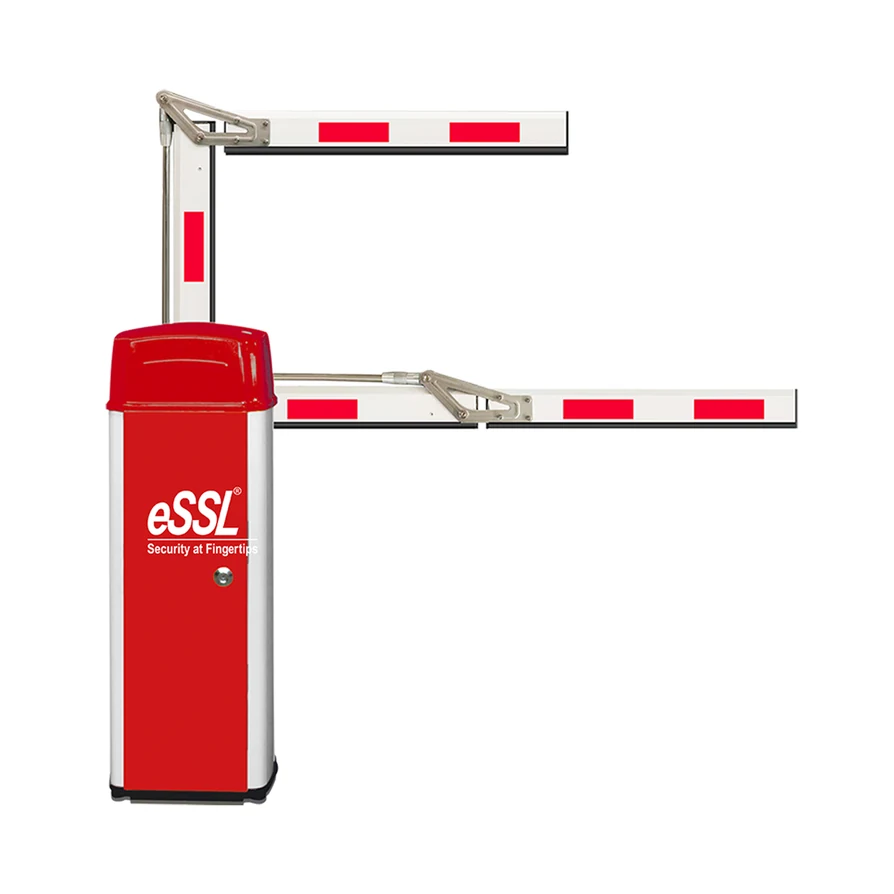

BG100 TI
Explore eSSL vehicle entry barriers and the accessories used for a complete installation.
- Maximum length of Boom : 5m (2.5M S + 2.5M B)
- Boom Rest Stand :Yes
- Arm material : Aluminium
- Time for Up/down : 6s
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusMaximum length of Boom : 5m (2.5M S + 2.5M B)
Boom Rest Stand :Yes
Arm material : Aluminium
Time for Up/down : 6s
Manufacturer details
Published product details.
Technical Specifications
| Maximum length of Boom | 5m (2.5M S + 2.5M B) |
|---|---|
| Boom Rest Stand | Yes |
| Arm material | Aluminum |
| Time for Up/down | 6s |
| Input control signal | Dry contact |
| Ingress protection Degree | IP55 |
| Input Interface for | 1. Photocell ,2. Air switch. |
| Output interface | Alarm lamp |
| Optional Interface | Access control panel, Standalone access control,Control button |
| Remote control | Yes,upto 25 meters |
| Mode | Automatic/Manual |
| Auto closing time | 1-99s |
- Incorporated control panel with 3 push buttons (STOP/UP/Down) to control the motor Bumping bounce back : Optional
Power Supply
| SMPS - Input | AC 220V / 110V, 50Hz / 60Hz |
|---|---|
| Motor power | 90W, 240V AC |
| Dimension (mm) | 268 X 348 X 1050 |
| operating temperature | -20˚C ~ +50˚C |
Features
| Duty Cycle | intensive |
|---|---|
| MCBF | 30 Lakhs |
- Can control by three position switch or by remote control unit, operate ‘OPEN’, ‘CLOSE’ and ‘STOP’
- Machine core with compression spring, effectively avoids the accidents caused by spring breaking.
- Motor cooling fan, solving the problem of heat-protection.
- Double safety limit switches
- Auto Close function.
- Manual Release
- Traffic Light interface. (Optional)
- Wire control (switch signal)\ Remote control ( upto25m)
- Compatible with Weigand and RFID Readers.
- Compatible with bio-metric
- Die-casting aluminum alloy motor, precision and good at thermal radiating
- Support the infrared photocell for anti-bumping function (optional)
Product information: eSSL manufacturer reference.
