BG180-BDC

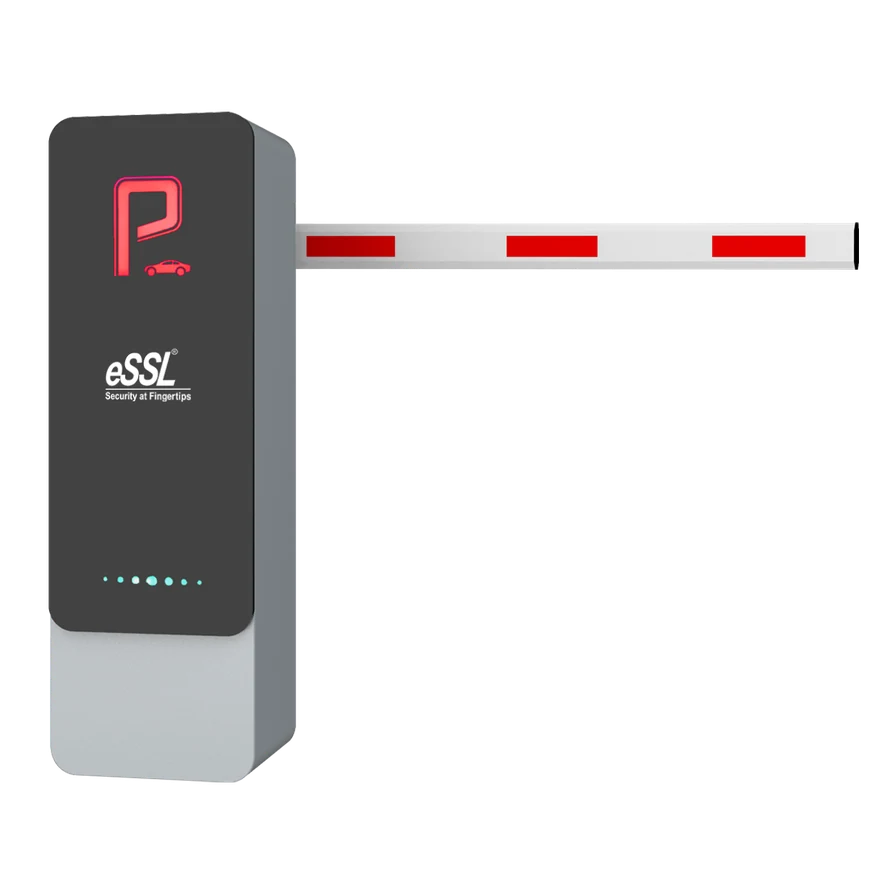

Name: eSSL BG180-BDC
Brand: eSSL

Explore eSSL vehicle entry barriers and the accessories used for a complete installation.

Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.

Product highlights

A closer look at the features.

Smart Bio Nexus

Working voltage ： 24VDC土5%

Environment humidity ： 10%~90% (non-condensing)

IP class ： IP54

Power Supply ： 220V+10%50/60Hz、110V土10% 50/60Hz

Manufacturer details

Working voltage	24VDC土5%
Environment humidity	10%~90% (non-condensing)
IP class	IP54
Rated Power	120W 24VDC
Power Supply	220V+10%50/60Hz、110V土10% 50/60Hz
Working Temperature	-35°C-70°C Max.
Boom Length with Operating Speed	6m (6s), 4m (3s), 3m (1.5s)

24VDC brushless motor drive, safe electrical, no risk of leakage.
DC brushless mechanism, DC brushless motor, hull limit switch, operate stable, low sound, long lifetime.
Operate speed at fastest 1.2S, the speed adjustment is available, soft start and soft stop function, high efficiency pass.
With reverse, auto-close, auto intelligent check function are available.
With connection for parking lot management system, loop detector, radar sensor, photocell. RS485 is optional.
Cabinet is electrophoresis then powder coating, for outdoor using.
Could operate by manual if power failure, auto operation by connecting backup battery is optional.
