Choose the configuration.
Confirm the model and any optional features listed in the manufacturer catalog.

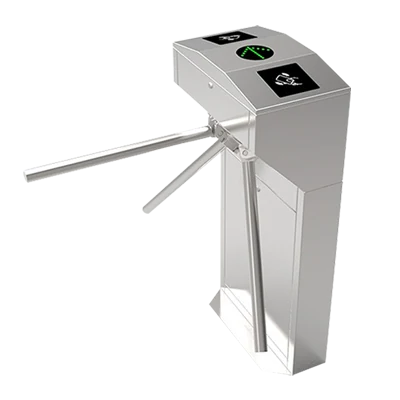

Smart Bio NexusET-1000 · eSSL
eSSL · Turnstiles
ET-1000
Explore eSSL tripod and full-height turnstiles for controlled pedestrian entry.
- Passage width : 520mm
- Throughput rate : 35 p/m
- Electro - magnetic drive : DC
- Net weight including bar : 44kg
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusPassage width : 520mm
Throughput rate : 35 p/m
Electro - magnetic drive : DC
Net weight including bar : 44kg
Manufacturer details
Published product details.
Technical Specifications
| Passage width | 520mm |
|---|---|
| Throughput rate | 35 p/m |
| Power supply | 100 ~ 240V |
| Operational voltage | 24V |
| Max power consumption | 30 W |
| Frequency | 50 ~ 60hz |
| Protection level | IP44 |
| Working temperature | -25°C ~ +70°C |
| Electro - magnetic drive | DC |
| Dimension excluding bar (in mm) | (L)480 x (W)280 x (H)980 |
| Net weight including bar | 44kg |
| MCBF | 5 Million |
Features
- Semi-Auto mode
- Pure mechanical mode
- Single or Bi-directional function in mechanical and electrical versions
- Automatic reset of barrier arms after each passage
- Adjustable time out delay
Operating Mode
| Housing | SS304 |
|---|---|
| Barrier Arms | Stainless steel |
| Lid (Optional) | Stainless steel or artificial stone(black / brown) |
- Single passage in the set direction
- Bi-directional passage
- Free passage in the set direction
- Always free or locked Materials
Secondary Controller
| Users | 30000 (RFID) |
|---|---|
| Fingerprint | 3000 |
| Transaction storage | 100000 |
| Integrated Controller | inbio-260 |
| Relay | 12 V relay for lock |
| Support Fire Alarm | Yes |
Reader
| RFID | Yes | Fingerprint : Yes |
|---|---|
| Protocol | RS485 / Mifare/Proxy (Optional) : Yes |
Product information: eSSL manufacturer reference.
