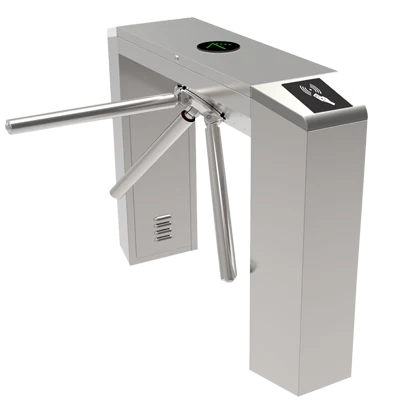

Smart Bio NexusET-2000 · eSSL
eSSL · Turnstiles
ET-2000
Explore eSSL tripod and full-height turnstiles for controlled pedestrian entry.
- Passage width : 550mm
- Throughput rate : 35 p/m
- Max tolerance of Arms : 80 Kg
- Angle per rotation : 120°
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusPassage width : 550mm
Throughput rate : 35 p/m
Max tolerance of Arms : 80 Kg
Angle per rotation : 120°
Manufacturer details
Published product details.
Technical Specifications
| Passage width | 550mm |
|---|---|
| Throughput rate | 35 p/m |
| Power supply | 100 ~ 240V |
| Operational voltage | 24V |
| Max tolerance of Arms | 80 Kg |
| Angle per rotation | 120 ° |
| Operation Type | One-way - Bidirectional |
| Input control signal | Dry contact |
| Max Power Consumption | 30 W |
| Frequency | 50 ~ 60hz |
| Protection level | IP44 |
| Working temperature | -25°C ~ +70°C |
| Electro - magnetic drive | DC |
| Dimension Excluding Bar | 1200x280x980 mm |
| Net weight including bar | 52kg |
| Opening Duration | 5s - 60s |
| MCBF | 5 Million |
Primary controller (Inbuilt)
| CPU | 32 bit Microprocessor |
|---|---|
| Opening Signal Input | yes |
| Emergency Switch Input | yes |
| Direction Indicator Output | yes |
| Passing Indicator Output | Yes |
| Drop Arm Electromagnet Output | Yes |
| Material Housing | SUS 304 |
| Operating Mode | Single way bi directional |
| Primary controller | Semi-automatic mode |
Secondary Controller
| Users | 30000 (RFID) |
|---|---|
| Fingerprint | 3000 |
| Transaction storage | 100000 |
| Integrated Controller | inbio-260 |
| Relay | 12 V relay for lock |
| Support Fire Alarm | Yes |
Reader
| RFID | Yes | Fingerprint : Yes |
|---|---|
| Protocol | RS485 / Mifare/Proxy (Optional) : Yes |
Product information: eSSL manufacturer reference.
