Smart Bio NexusFB-E-2200 · eSSL
eSSL · Flap barriers

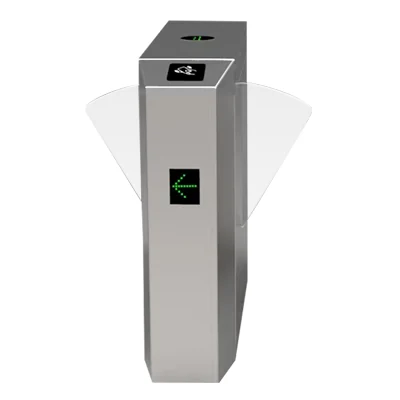

FB-E-2200
Explore eSSL flap barriers for pedestrian entry and access installations.
- Power Requirements: 100~240V AC
- Working Temperature : -28OC to 60OC
- Working Humidity: 5%~80%
- Working Environment : Indoor/outdoor (if sheltered)
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusPower Requirements: 100~240V AC
Working Temperature : -28OC to 60OC
Working Humidity: 5%~80%
Working Environment : Indoor/outdoor (if sheltered)
Manufacturer details
Published product details.
Technical Specifications
| Power Requirements | 100~240V AC |
|---|---|
| Working Temperature | -28OC to 60OC |
| Working Humidity | 5%~80% |
| Working Environment | Indoor/outdoor (if sheltered) |
| RFID | Maximum 35/ minute |
| Fingerprint | Maximum 25/ minute |
| Face | Maximum 11/ minute |
| Vein | Maximum 23/ minute |
| Lane width(mm) | 550 |
| IPraƟng | IP44 |
| Input | Dry Contact |
| Unlock Time | 0.2 sec |
| Dimensions(mm) | L=1200,W=280,H=980 |
| Net Weight(kg) | 52 kg (single machine) 87kg (double machine) |
| LED Indicator | Yes |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | SUS304 Stainless Steel |
| Barrier Material | Transparent Acrylic light (Red, Green & Blue) |
| Barrier Movement | Retracting |
| Emergency Mode | Yes |
| Security Level | Medium |
| MCBF | 3 million |
Product information: eSSL manufacturer reference.
