Smart Bio NexusFB-E-2216 · eSSL
eSSL · Flap barriers

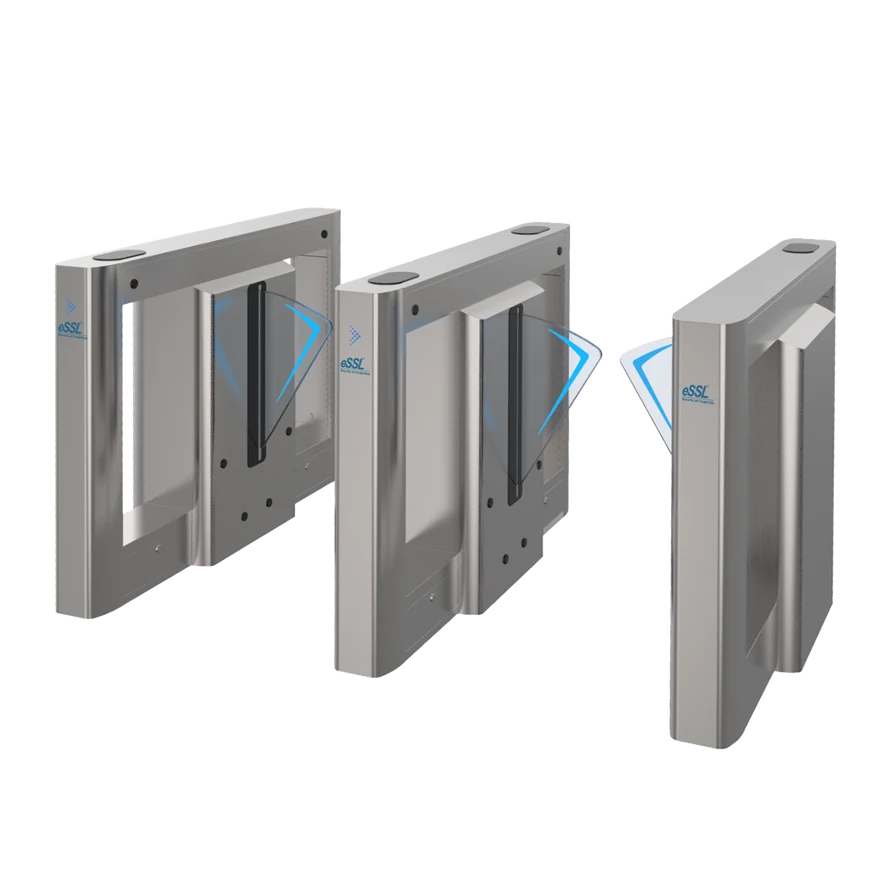

FB-E-2216
Explore eSSL flap barriers for pedestrian entry and access installations.
- Size(L*W*H) : 1400*280*980mm
- Pass width : 550mm
- Power : 50W
- Material : Top δ=1.2mm/ body δ=0.9mm SUS304
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusSize(L*W*H) : 1400*280*980mm
Pass width : 550mm
Power : 50W
Material : Top δ=1.2mm/ body δ=0.9mm SUS304
Manufacturer details
Published product details.
Technical Specifications
| Size(L*W*H) | 1400*280*980mm |
|---|---|
| Pass width | 550mm |
| Power | 50W |
| Material | Top δ=1.2mm/ body δ=0.9mm SUS304 |
| Bar Material | Acrylic Arm+RGB light |
| Movement | Brushless Movement of Swing Gate |
| Infrared sensor | 6 pairs |
| Indicator Light | RGB light |
| Drive Unit | Brushless DC 30K 40W |
| Power Supply | 24V 150W |
| Control Unit | Brushless control system |
| Communication Interface | Dry contact & RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20°C~+70°C |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
Functions & Features
| Two modes of operation are available | open or closed. |
|---|
- Reasonable and reliable design, low noise, smooth operation and long service life
- With functions of anti-tail, anti-reverse pass and so on
- Card can be set "with memory" or "without memory" functions
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set
- With infrared anti-clip function (anti-clip when gate is open or running)
- Compatible with IC, ID card, scanning and face recognition, etc.
- Various working modes are available, including two-way card reading and one-way card reading, etc.
Product information: eSSL manufacturer reference.
