Choose the configuration.
Confirm the model and any optional features listed in the manufacturer catalog.

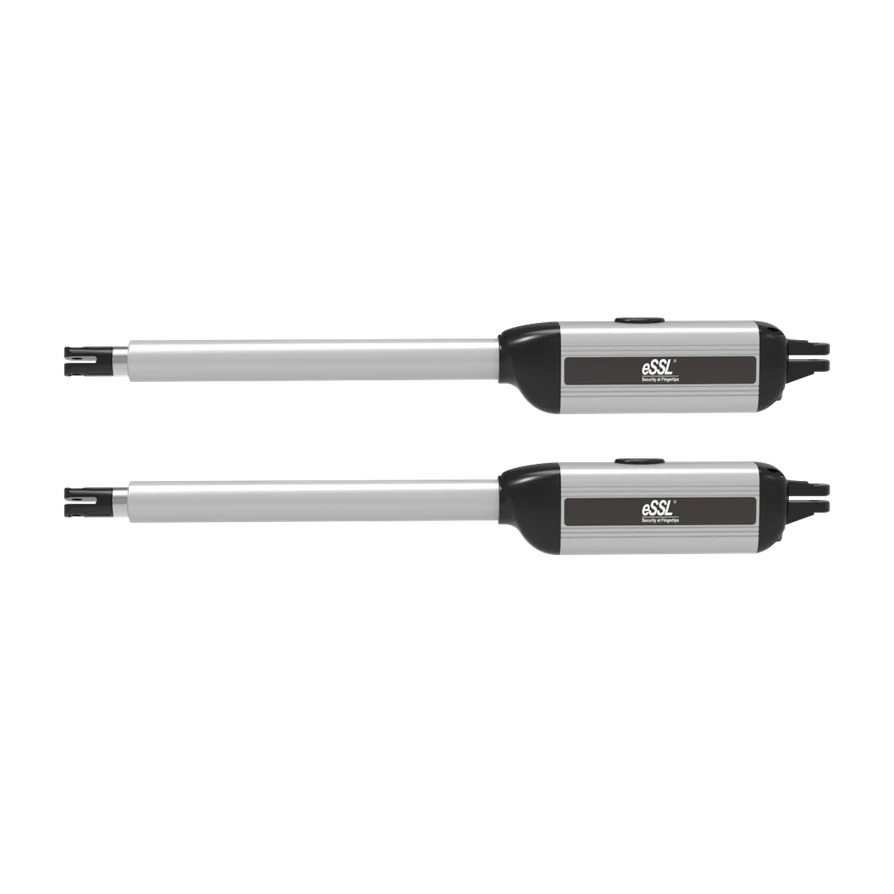

Smart Bio NexusGO-O-03 · eSSL
eSSL · Swing gate openers
GO-O-03
Explore eSSL operators for automating swing gates.
- Power of motor: 12VDC/24VDC 45W
- Rotational speed: 3200RPM
- Rod’s running speed: 1.6cm/s
- Rod's max travel: 300mm 400mm 500mm
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusPower of motor: 12VDC/24VDC 45W
Rotational speed: 3200RPM
Rod’s running speed: 1.6cm/s
Rod's max travel: 300mm 400mm 500mm
Manufacturer details
Published product details.
Technical Specifications
| Power of motor | 12VDC/24VDC 45W |
|---|---|
| Rotational speed | 3200RPM |
| Rod’s running speed | 1.6cm/s |
| Rod's max travel | 300mm 400mm 500mm |
| Max leaf length | 3mx2 |
| Max single-leaf weight | 300Kg |
| Environment Temperature range | -20℃~+55℃ |
| Protection class | IP54 |
| Continual run time | 5min |
Features
- Stop or return when the Gate encounters an obstacle during operation
- 24V Battery can be connected
- The delay automatic closing function can be enabled
- Opening and closing operation time protection settings
- The open/close force can be adjusted to ensure that it is operation in different situation;
Product information: eSSL manufacturer reference.
Smart Bio Nexus · Chennai
Plan your installation.
Share your site requirements. We’ll help you check the product configuration, supporting accessories and setup.
Check the installation.
Discuss placement, power, connectivity and compatibility for your site.
Arrange support.
Ask Smart Bio Nexus about installation, configuration and ongoing service.
Explore the category
