Smart Bio NexusGO-O-19 · eSSL
eSSL · Swing gate openers

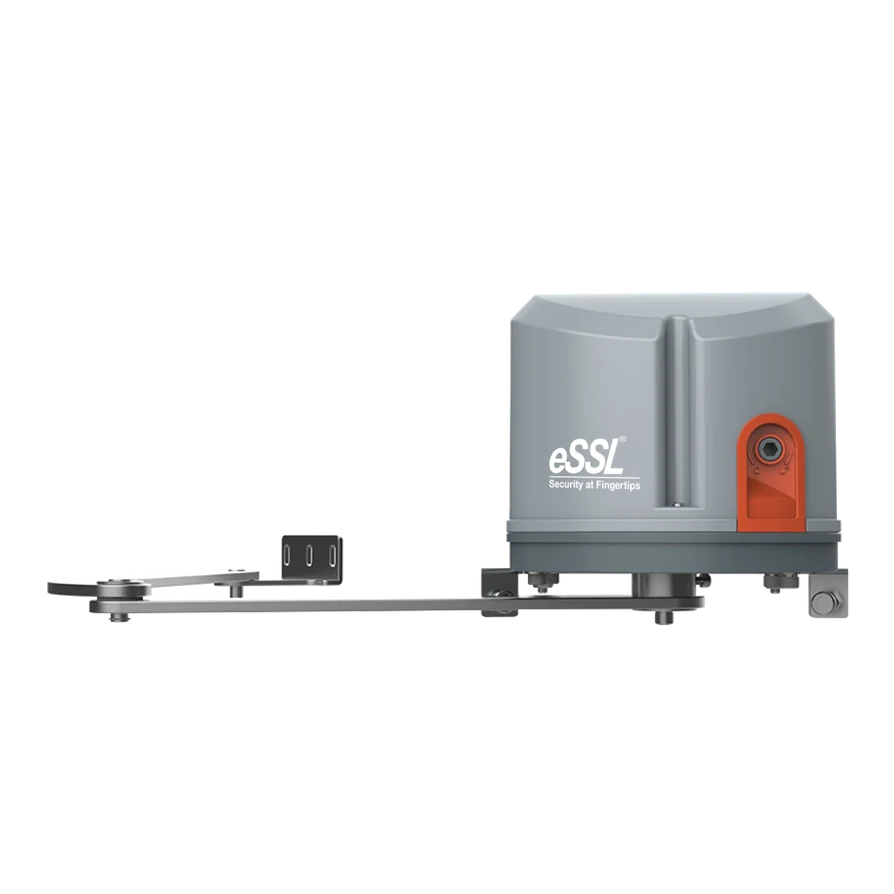

GO-O-19
Explore eSSL operators for automating swing gates.
- Supply voltage: 220VAC /110V 60Hz ±10%
- Motor power: 80W
- Input Voltage: 24VDC +5%
- Protect Class: IP54
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusSupply voltage: 220VAC /110V 60Hz ±10%
Motor power: 80W
Input Voltage: 24VDC +5%
Protect Class: IP54
Manufacturer details
Published product details.
Technical Specifications
| Supply voltage | 220VAC /110V 60Hz ±10% |
|---|---|
| Motor power | 80W |
| Input Voltage | 24VDC +5% |
| Protect Class | IP54 |
| Output rotational speed | 3r/min |
| Max Length of single gate | 3M |
| Max weight of single gate | 300kgs |
| Environment Temperature range | -30℃~+60℃ |
Features
| Reverse function | return the gate when gate is blocked during closing, stop the gate when gate is blocked during opening. |
|---|
- 24V DC voltage drive, more safe and reliable;
- DC motor, working stable, quiet operation, long life time;
- Fit for both left and right gate;
- Single operate or double operate is available;
- Including terminals for photocell, e-lock, alarm lamp, backup battery;
- Release to operate the gate by manual if power failure;
