Smart Bio NexusSB-ES-3012-2 · eSSL
eSSL · Swing barriers

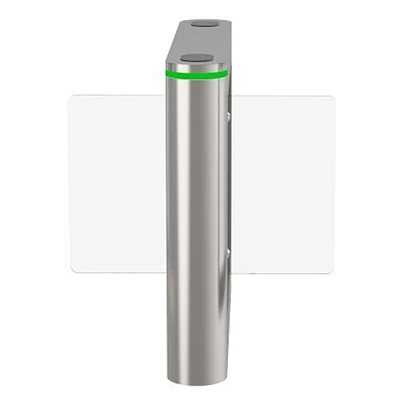

SB-ES-3012-2
Explore eSSL swing barriers for controlled pedestrian access.
- Product Size: 1200*185*980mm
- Pass Width: 600mm
- Net Weight: 65kg
- Thickness: 1.0mm
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusProduct Size: 1200*185*980mm
Pass Width: 600mm
Net Weight: 65kg
Thickness: 1.0mm
Manufacturer details
Published product details.
Technical Specifications
| Product Size | 1200*185*980mm |
|---|---|
| Pass Width | 600mm |
| Net Weight | 65kg |
| Thickness | 1.0mm |
| Material | 1.0mm SUS 304 |
| Operating Time | 0.2 Seconds |
| Top cover Material | 1.2mm SUS304 |
| Arm Material | 10mm Transparent Acrylic |
| Driver | Brushed Motor |
| Infrared Sensor | 4pairs |
| Pass rate | 20-35p/m |
| Power Supply | 100-240V(AC) |
| Operational Voltage | 24V(DC) |
| Max Power Consumption | 35W |
| Frequency | 50-60hz |
| Working Temperature | -25 to +70 ℃ |
| MCBF | 5,000,000cycles |
Product information: eSSL manufacturer reference.
Smart Bio Nexus · Chennai
Plan your installation.
Share your site requirements. We’ll help you check the product configuration, supporting accessories and setup.
Check the installation.
Discuss placement, power, connectivity and compatibility for your site.
Arrange support.
Ask Smart Bio Nexus about installation, configuration and ongoing service.
