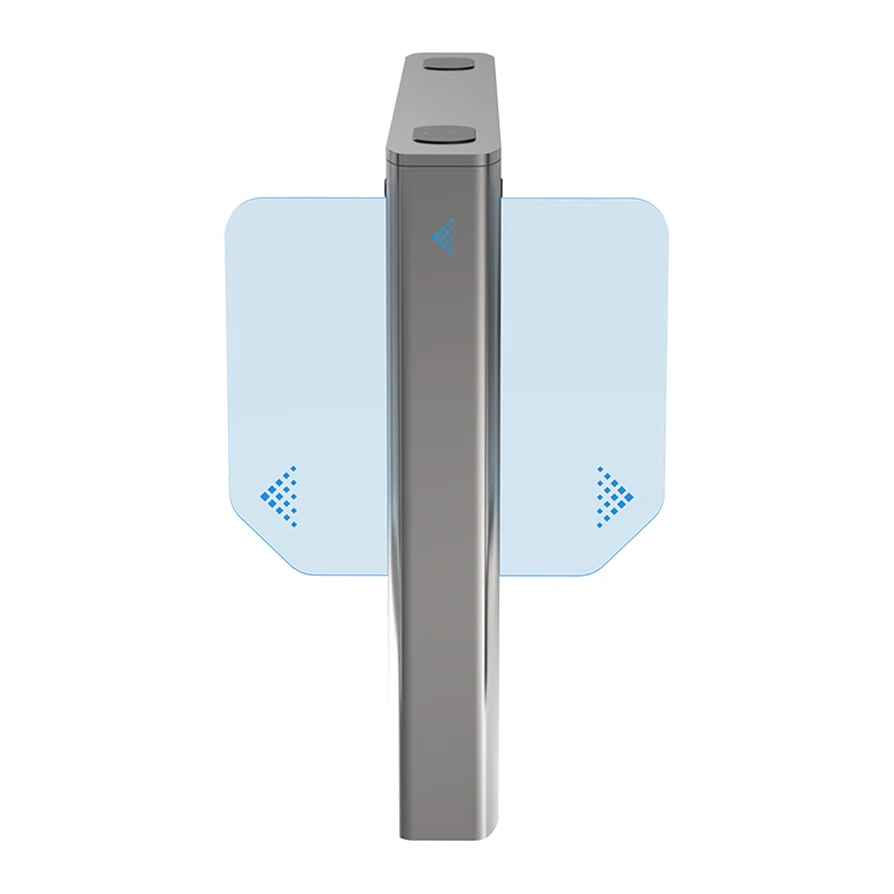

Smart Bio NexusSB-ES-3216-2 · eSSL
eSSL · Swing barriers
SB-ES-3216-2
Explore eSSL swing barriers for controlled pedestrian access.
- Size（L*W*H) : 1400*160*980mm
- Fuselage material : Top cover 1.2mm+body 0.9mm 304 brushed plate
- Diaphragm material : 8mm clear acrylic
- Pass width : 600-900mm
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusSize（L*W*H) : 1400*160*980mm
Fuselage material : Top cover 1.2mm+body 0.9mm 304 brushed plate
Diaphragm material : 8mm clear acrylic
Pass width : 600-900mm
Manufacturer details
Published product details.
Technical Specifications
| Size（L*W*H) | 1400*160*980mm |
|---|---|
| Fuselage material | Top cover 1.2mm+body 0.9mm 304 brushed plate |
| Diaphragm material | 8mm clear acrylic |
| Baffle material | 10mm clear acrylic |
| Pass width | 600-900mm |
| Movement | Brushless swing brake integrated movement |
| Power supply | 24V 150W |
| Input voltage | AC100V~240V,50/60HZ |
| Equipment power | 55W |
| Drive motor | Fengdun DC brushless 90K 30W |
| Pass rate | Open 50 people/min; Usually closed 35 people/min |
| Speed of opening and closing | Adjustable from 0.5s to 1.5s |
| Sensor pairs | 6 pairs |
| Pilot lamp | Three color light panel + three color light strip |
| Communication mode | Dry contact |
| Controls | 12V brushless simplified board + electric control box + mesh board box /li> |
| Temperature | -20℃~+70℃ | Noise : ≤65dB |
| Humidity | ≤90% No condensation |
| Class of protection | IP4X |
Features
| Two modes of operation are available | open or closed |
|---|
- Reasonable and reliable design, low noise, smooth operation and long service life
- With function of opening doors automatically under power-off¬ state to meet the need of fire-fighting passage
- With functions of anti-tail, anti-reverse pass and so on
- Card can be set "with memory" or "without memory" functions
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set
- With infrared anti-clip function (anti-clip when gate is open or running)
- Compatible with IC, ID card, scanning and face recognition, etc
- Various working modes are available, including two-way card reading and one-way card reading, etc.
