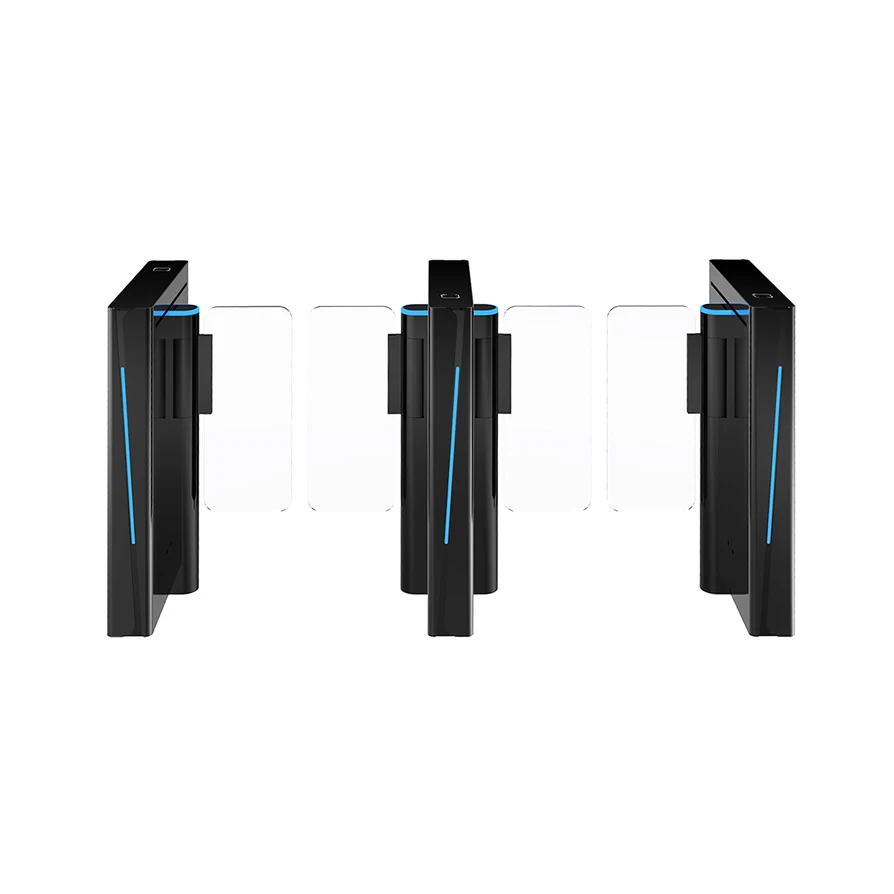

Smart Bio NexusSB-ES-3218 · eSSL
eSSL · Swing barriers
SB-ES-3218
Explore eSSL swing barriers for controlled pedestrian access.
- Size（L*W*H) : 600*130*980mm
- Material : Top T=3.0mm/ body T=8.0mm
- Arm Material : 8mm clear acrylic
- Pass width : 600-900mm
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusSize（L*W*H) : 600*130*980mm
Material : Top T=3.0mm/ body T=8.0mm
Arm Material : 8mm clear acrylic
Pass width : 600-900mm
Manufacturer details
Published product details.
Technical Specifications
| Size（L*W*H) | 600*130*980mm |
|---|---|
| Material | Top T=3.0mm/ body T=8.0mm |
| Arm Material | 8mm clear acrylic |
| Pass width | 600-900mm |
| Height From Ground (upper part) | 900mm |
| Height From Ground (lower part) | 245mm |
| Movement | standard speed gate movement |
| Power supply | 24V 500W |
| Input voltage | AC100V~240V,50/60HZ |
| Drive Unit | DC Brushless motor |
| Pass rate | 35-50 persons/minute |
| Open Speed | 0.5s/1.5s |
| Sensor pairs | 6 pairs |
| Clutch size | ф=80mm |
| Pilot lamp | RGB light |
| Communication mode | RS485 |
| Controls | 1V2 Brushless controller |
| Noise | ≤65dB |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensationli> |
| IP | IP4X |
| Environment | Indoor |
Features
| Two modes of operation are available | open or closed |
|---|
- Reasonable and reliable design, low noise, smooth operation and long service life
- With function of opening doors automatically under power-off¬ state to meet the need of fire-fighting passage
- With functions of anti-tail, anti-reverse pass and so on
- Card can be set "with memory" or "without memory" functions
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set
- With infrared anti-clip function (anti-clip when gate is open or running)
- Compatible with IC, ID card, scanning and face recognition, etc
- Various working modes are available, including two-way card reading and one-way card reading, etc.
