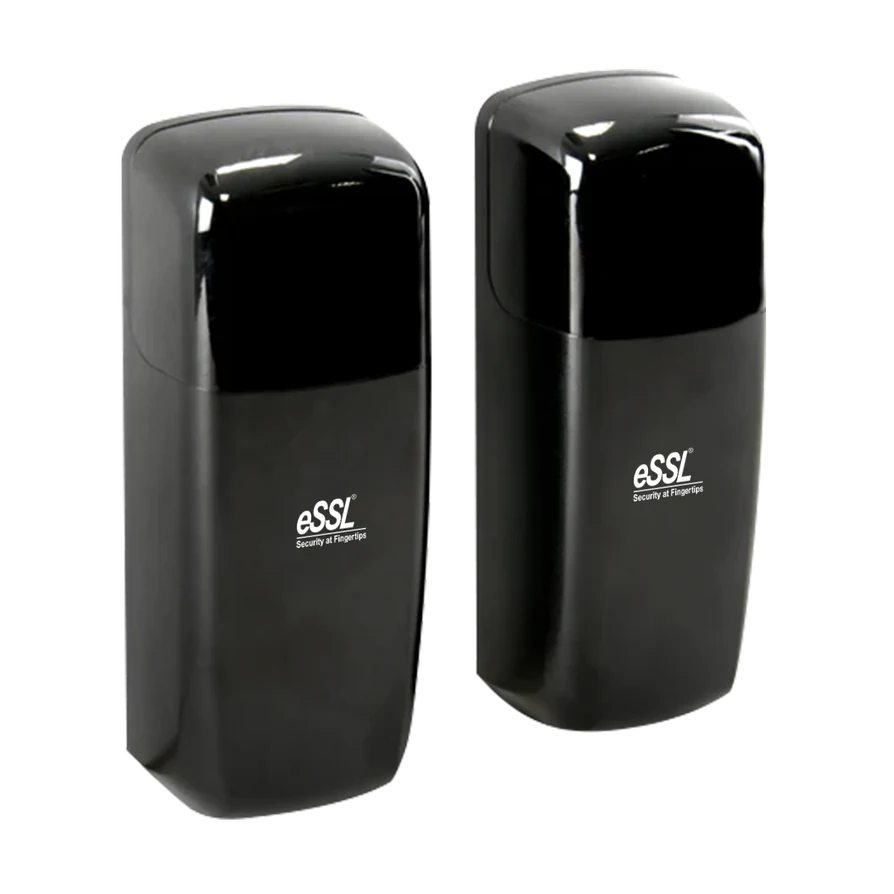

Wireless Photo Cell PSA122
Explore eSSL vehicle entry barriers and the accessories used for a complete installation.
- Product Name : 12V Photocell, gate photocell
- Working voltage : 12-24VAC/DC or 1.5V,LR6AA size (Wired 12V 2Amp suggestable)
- Working current : Emitter:≤8mA Receiver:≤40mA
- Photocell wavelength : 940nm
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusProduct Name : 12V Photocell, gate photocell
Working voltage : 12-24VAC/DC or 1.5V,LR6AA size (Wired 12V 2Amp suggestable)
Working current : Emitter:≤8mA Receiver:≤40mA
Photocell wavelength : 940nm
Manufacturer details
Published product details.
Technical Specifications
| Product Name | 12V Photocell, gate photocell |
|---|---|
| Working voltage | 12-24VAC/DC or 1.5V,LR6AA size (Wired 12V 2Amp suggestable) |
| Working current | Emitter:≤8mA Receiver:≤40mA |
| Photocell wavelength | 940nm |
| Technology | Infrared |
| Receiver | ≤ 15m |
| Wave Length | 940nm |
| Angle of opposite emission | ≤+/-5° |
| Receiver range | ≥12m |
| Internal Rotation System Adjusted | 0~180° |
| Working temperature | -20℃~+60℃ |
| Relay contact loading capacity | 1A/30VDC |
| Photo Cell Type | For Door Auto door opening throughInfrared sensor |
| Conduction | can be reduced to 30% in bad weather conditions: For, rain, dust, etc. |
Product information: eSSL manufacturer reference.
