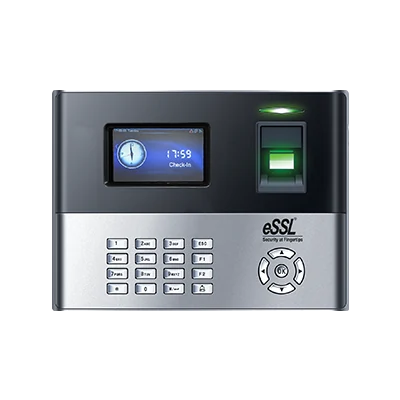

Smart Bio NexusX990 · eSSL
eSSL · Fingerprint devices
X990
Explore eSSL fingerprint devices and compare their storage, communication and software support.
- Fingerprint Capacity : 10000
- Transaction Capacity : 100000
- Card Capacity : 10000
- Fingerprint sensor : 500 DPI Optical sensor
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusFingerprint Capacity : 10000
Transaction Capacity : 100000
Card Capacity : 10000
Fingerprint sensor : 500 DPI Optical sensor
Manufacturer details
Published product details.
Storage Capacity
| Fingerprint Capacity | 10000 |
|---|---|
| Card Capacity | 10000 |
| Transaction Capacity | 100000 |
| Card Reader | Inbuilt proximity card reader (Optional Mifare, HID prox) |
| CPU | 32bit microprocessor |
| SDRAM | 128 MB Nand Flash |
| Flash | 256 MB Nand Flash |
| Kernel | 2.6 |
Biometric
| Fingerprint sensor | 500 DPI Optical sensor |
|---|---|
| FAR | <=0.0001% |
| FRR | <=1% |
| Identification speed | <0.5 sec |
| Algorithm Ver | 10 |
Audio/Visual
| Display | 3" Color TFT |
|---|---|
| Keypad | Yes |
| LED Indicator | Green/Red |
| Schedule Bell/Speaker | Mini Speaker |
Communication
| TCP/IP, USB, (Optional | WiFi, GPRS) |
|---|---|
| Push data | Yes (support both static IP and domain server) Standard Features : work code,SMS,DLST, Self service query, Status Switch |
Power & Environment
| Power Supply | DC 12V --- 1.5Amp |
|---|---|
| Operating Temperature | 0oC - 45oC |
| Operating Humidity | 20% - 80% |
| Dimension(in mm) | (L)210 x (W)157 x (H)40 |
Access control
| Wiegand | In & Out both 26 or 34 bit (With or without site code) |
|---|---|
| Relay | 12 V relay for lock EM lock, Bolt Lock or Strike lock |
| Support Fire Alarm | Yes |
| Door Sensor | Yes |
| Anti Passback | Yes |
| Door Bell | Yes |
Exit Readers
| Support exit readers | 101 HE , FR 1200, Push Button, KR500, Notouch, KR503 |
|---|
Optional
| Battery | Yes |
|---|---|
| Card readers | Mifare/HID Prox |
| Communication | WiFi/GPRS |
| Sensor | Mifare/HID Prox |
Compatibility
- Compatible with Multi Door controllers via weigand
- External Speaker output available (Optional)
- External Bulb output available (Optional)
- Support External Printer
Compatible Software and SDK
- eTimeTrackLite desktop & web
- SDK for desktop applications
- Web based Device Management application using Push data. Helps developers & integrators
- Supports 3rd Party Payroll/HRMS/ERP and Other applications
Major Applications
- Time & Attendance , Canteen Management, School Attedance, Production Management, Gym & clubs
