Smart Bio NexusC3-100 Plus · eSSL
eSSL · Door controllers

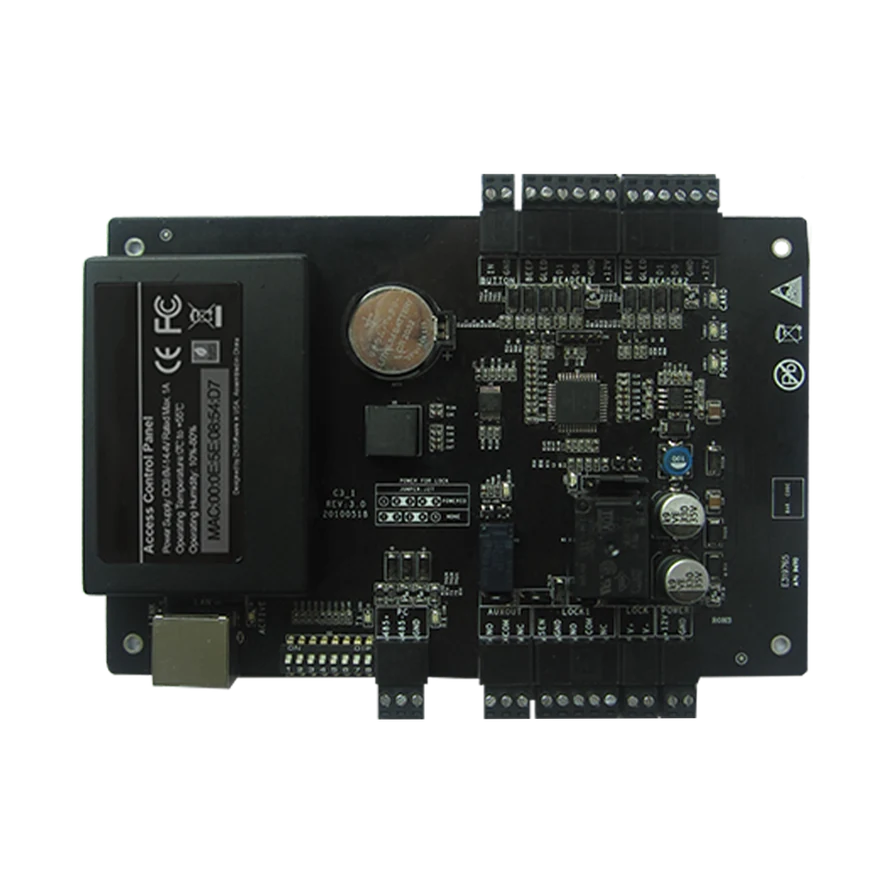

C3-100 Plus
Explore eSSL controllers for managing door and lift access.
- Operating System: Linux OS
- Number of Door: 1 Door
- Card Capacity: 30,000 (default) and can be expanded up to 1,00,000 with a license
- Transaction Capacity: 5, 00,000
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusOperating System: Linux OS
Number of Door: 1 Door
Card Capacity: 30,000 (default) and can be expanded up to 1,00,000 with a license
Transaction Capacity: 5, 00,000
Manufacturer details
Published product details.
Technical Specifications
| Operating System | Linux OS |
|---|---|
| Number of Door | 1 Door |
| Card Capacity | 30,000 (default) and can be expanded up to 1,00,000 with a license |
| Transaction Capacity | 5,00,000 |
| Communication | TCP/IP |
| Number of Readers Supported | 2 * 26-bit Weigand reader |
| Types of Readers Supported | 26-bit Wiegand |
| Number of Inputs | 2(1 Exit Button, 1 Door Status) |
| Number of Outputs | 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) |
| Mounting | Wall Mount |
| Power Supply | 9.6V - 14.4V DC |
| Operating Temperature | 0℃ to 45℃ |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Dimensions (mm) | 175 mm*99 mm*19.3 mm (L*W*H) |
| Access Control Interface | Wiegand (Card Reader/QR Code Reader) |
| Communication | TCP/IP, Weigand (Input)*2, Aux Output*1, Lock*1, Door Sensor*1, Exit Button*1, Alarm*1 |
| Supported Software And Database | eSSL Bio CV Security 6.4.1 (Web Version) Database: Default PGSQL, Alternate: MSSQL / Oracle. |
| PC Requirements to Install Software | Your PC RAM should be 16GB RAM, OS should be windows 10 or above, Antivirus or Firewall should be off during the installation after the installation we can use. |
| Software Features | 256 Time Zones, 256 Access levels, Holidays, Anti-pass back, Interlock function ,Linkage function, Multi-Card Opening function, Remote door opening and closing, Advance Options, Global Anti-pass back, Global Interlock, Multiple Verification Methods, Real-Time monitoring Via Web browser |
