Smart Bio NexusC3-400 · eSSL
eSSL · Door controllers

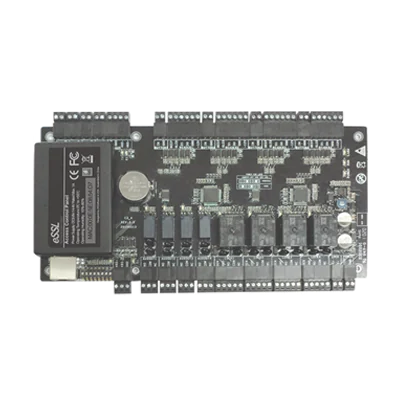

C3-400
Explore eSSL controllers for managing door and lift access.
- User Capacity: 30000
- Event Buffer: 100000
- CPU: 32bit MIPS CPU
- RAM: 32MB
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusUser Capacity: 30000
Event Buffer: 100000
CPU: 32bit MIPS CPU
RAM: 32MB
Flash Memory: 128 MB
Power/Current: DC 9.6V-14.4V, Rated Max. 1A
Manufacturer details
Published product details.
Technical Specifications
| User Capacity | 30000 |
|---|---|
| Event Buffer | 100000 |
| CPU | 32bit MIPS CPU |
| RAM | 32MB |
| Flash Memory | 128 MB |
| Power/Current | DC 9.6V-14.4V, Rated Max. 1A |
| Communication | RS485, TCP/IP |
| Operating Temperature | 0°C - 55°C |
| Operating Humidity | 10% to 80% |
| Dimension (mm) | 218(W) x 106(H) (Single board) 345(W) x 275(H) x 70(D) (With power supply and metal box) |
| Number of Outputs | 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) |
| Support | Proximity /Mifare / HID Readers Numbers of readers supported : 12 (8 RS-485 Reader,4 26-bit wiegand reader) |
| Types of readers supported | 26-bit Wiegand and RS485 FR Series Reader |
| Number of Inputs | 12( 4 Exit Device, 4 Door Status, 4 AUX) |
| Number of Outputs | 8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output) |
- Relative Humidity Non-Condensing
Features
- 256 time Zones, 256 access levels
- Anti-passback function
- Interlock function , Linkage function
- Multi-Card Opening function, Remote door opening and closing
- Real-Time monitoring Via Web browser
- 4 auxiliary input may be connected to infrared body detectors,
- fire alarms, smoke detectors etc.
- 4 auxiliary output may be connected to alarms, cameras,door bells etc.
Software and Database Supported
| Database Type | - MS Access / MS SQL |
|---|
- Access Security System 3.5 (Desktop Version)
