Smart Bio NexusC3-100 · eSSL
eSSL · Door controllers

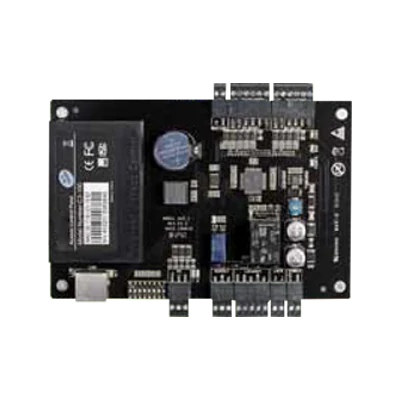

C3-100
Explore eSSL controllers for managing door and lift access.
- Number of Door : 1 Door
- Card Holders Capacity : 30000
- Log Events Capacity : 100000
- Communication : TCP/IP and RS-485
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusNumber of Door : 1 Door
Card Holders Capacity : 30000
Log Events Capacity : 100000
Communication : TCP/IP and RS-485
Manufacturer details
Published product details.
Technical Specifications
| Number of Door | 1 Door |
|---|---|
| Card Holders Capacity | 30000 |
| Log Events Capacity | 100000 |
| Communication | TCP/IP and RS-485 |
| Number of Readers Supported | 2 ( 26-bit Wiegand reader) |
| Types of Readers Supported | 26-bit Wiegand, others upon request |
| Number of Inputs | 2( 1 Exit Button, 1 Door Sensor) |
| Number of Outputs | 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) |
| Weight | 7.4lbs (3.35kg) |
| Enclosure | Powder Coated Aluminium |
| Mounting | Wall Mount |
| Recommended Power Supply | 12V DC, 1.5A |
| Dimensions (Bundle Only) | 380mm(L)X80mm(W) X 280mm(H) |
| Dimensions ( Board Only) | (160mm×106mm) |
Features
- TCP/IP and RS485 communication
- Built-in Auxiliary input and Output
- Access Control Functions
- Support full range of card readers
Software and Database Supported
| Database Type | - MS Access / MS SQL |
|---|
- Access Security System 3.5 (Desktop Version)
Product information: eSSL manufacturer reference.
