Choose the configuration.
Confirm the model and any optional features listed in the manufacturer catalog.

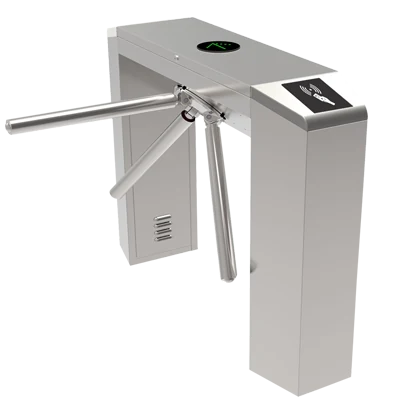

Smart Bio NexusETA-2000 (Automatic) · eSSL
eSSL · Turnstiles
ETA-2000 (Automatic)
Explore eSSL tripod and full-height turnstiles for controlled pedestrian entry.
- Passage width : 520mm
- Throughput rate : 35 p/m
- Max tolerance of Arms : 80 Kg
- Dimension Excluding Bar : 1200x280x980 mm
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusPassage width : 520mm
Throughput rate : 35 p/m
Max tolerance of Arms : 80 Kg
Dimension Excluding Bar : 1200x280x980 mm
Manufacturer details
Published product details.
Technical Specifications
| Passage width | 520mm |
|---|---|
| Throughput rate | 35 p/m |
| Power supply | 100 ~ 240V |
| Operational voltage | 24V |
| Max tolerance of Arms | 80 Kg |
| Angle per rotation | 120° |
| Operation Type | Oneway - Bidirectional |
| Input control signal | Dry contact |
| Max Power Consumption | 30 W |
| Frequency | 50 ~ 60hz |
| Protection level | IP44 |
| Working temperature | -25°C ~ +70°C |
| Electro - magnetic drive | DC |
| Dimension Excluding Bar | 1200x280x980 mm |
| Net weight including bar | 52kg |
| Opening Duration | 5s - 60s |
Features : Controller
- Full-Auto mode
- Single or Bi-directional function in mechanical and electrical
- Automatic reset of barrier arms after each passage
- Adjustable time out delay
Operating Mode
- Single passage in the set direction
- Bi-directional passage
- Free passage in the set direction
- Always free or locked
Materials
| Housing | Made in metal sheet and painted, in or stainless steel AISI 304 or AISI 316 |
|---|---|
| Barrier Arms | Stainless steel |
| Lid (Optional) | Stainless steel or artificial stone(black / brown) |
Colours & Finishes
- High quality powder coating plus lacquered finish
- Dark grey color high quality powder coating plus lacquered finish
- Sandpaper powder coating with pearl mica effect
Secondary Controller
| Users | 30000 (RFID) |
|---|---|
| Fingerprint | 3000 |
| Transaction storage | 100000 |
| Integrated Controller | inbio-260 |
| Relay | 12 V relay for lock |
| Support Fire Alarm | Yes |
Reader
| RFID | Yes | Fingerprint : Yes |
|---|---|
| Protocol | RS485 / Mifare/Proxy (Optional) : Yes |
Product information: eSSL manufacturer reference.
