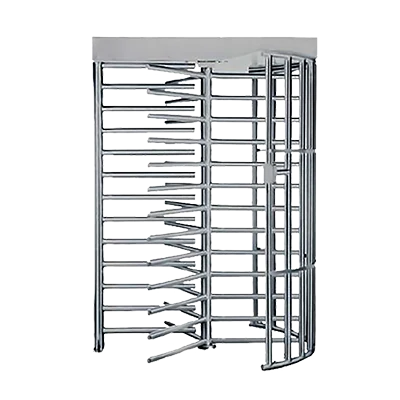

Smart Bio NexusFHT-TL-139 · eSSL
eSSL · Turnstiles
FHT-TL-139
Explore eSSL tripod and full-height turnstiles for controlled pedestrian entry.
- Power Supply: 100V ~ 240V AC
- Control Circuit: 24V DC
- Power Consumption: 30W
- Operating Temper range: -25°c ~ +70°c
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusPower Supply: 100V ~ 240V AC
Control Circuit: 24V DC
Power Consumption: 30W
Operating Temper range: -25°c ~ +70°c
Manufacturer details
Published product details.
Technical Specifications
| Power Supply | 100V ~ 240V AC |
|---|---|
| Control Circuit | 24V DC |
| Power Consumption | 30W |
| Operating Temper range | -25°c ~ +70°c |
| Protection level (IP) | > 44 |
| MCBF | 5 Million Cycles |
| Humidity | 95% |
| Hydraulic damper | Adjustable |
| Solenoid | 24V DC 100% |
| Throughout | Person |
| Communication Interface | RS485 or TCP IP |
| passage width | < 650mm |
| Frequency | < 50Hz or 60Hz |
| Electro -magnetic drive | DC |
| Section Version | 120 degrees |
| No of arms | 3 arms |
| Dimensions | 1630 x 1500 x2310mm |
| Net weight | 220kg |
Features
- Designed for secure operation wish aesthetics inland
- Corrosion protected S/S frame
- Minimal exposed hardware
- Heavy Gauge materials ASTM Standard
- Consists of rotor assembly, shield Assembly, barrier section, mechanism housing & ceiling plate
- The barrier can be set to delay closing in 1 ~ 60s after a valid card reading
- Single passage in the set direction
- Bi-directional single passage
- Free passage in the direction
- Always free or locked
