Smart Bio NexusINBIO260 · eSSL
eSSL · Door controllers

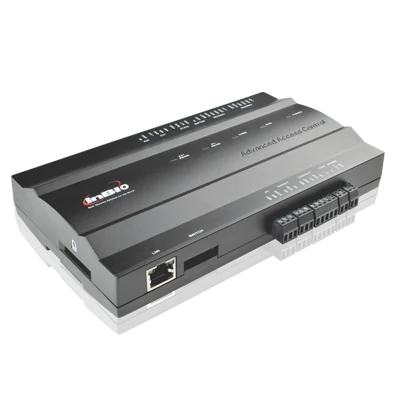

INBIO260
Explore eSSL controllers for managing door and lift access.
- Number of doors controller : 2 Door
- Card holders Capacity : 30000
- Fingerprint Capacity : 3000
- Log Events Capacity : 100000
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusNumber of doors controller : 2 Door
Card holders Capacity : 30000
Fingerprint Capacity : 3000
Log Events Capacity : 100000
Manufacturer details
Published product details.
Technical Specifications
| Number of doors controller | 2 Door |
|---|---|
| Numbers of readers supported | 8(4 RS-485 Reader, 26-bit wiegand reader) |
| Types of readers supported | 26-bit Wiegand and RS485 FR Series Reader |
| Number of Inputs | 6( 2 Exit Device, 2 Door Status, 2 AUX) |
| Number of Outputs | 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output) |
| Card holders Capacity | 30000 |
| Fingerprint Capacity | 3000 |
| Log Events Capacity | 100000 |
| Communication | TCP/IP and RS-485 |
| Package Dimension | 350(L)×90(H)×300(W)mm |
| Package Weight | 3.6kg |
| CPU | 32 bit 400MHz CPU |
| RAM | 32M |
| Flash Memory | 128M |
| Power | 9.6V-14.4V DC |
| Operating Temp | 0 - 45 °C |
| Operating Humidity | 20% to 80% |
Features
- Embedded Fingerprint verification and advance access control function
- It can be installed easily on your network also support TCP/IP and RS485 communication
- 1/2/4 Door models can be mixed and matched in an optimised System Architecture
- Data is preserved if power is lost, Controller continues to operate if data connection is interrupted Anti-Passback,Interlock,First-Card Opening,Multi-Card Opening
- Duress Password Entry, and Auxilary input/output linkages are inbuilt into controller firmware
Software and Database Supported
| (1) Biosecurity 3.1.0.0(Web Version) database | - PGSQL / MS SQL |
|---|---|
| (2) Access Security System 3.5 (Desktop Version) Database Type | - MS Access / MS SQL |
Product information: eSSL manufacturer reference.
