Choose the configuration.
Confirm the model and any optional features listed in the manufacturer catalog.
Smart Bio NexusINBIO460 · eSSL
eSSL · Door controllers

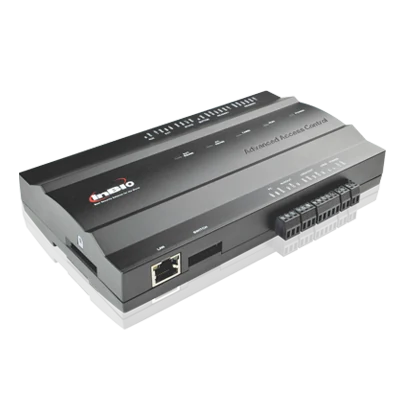

INBIO460
Explore eSSL controllers for managing door and lift access.
- CPU : 32bit MIPS CPU
- RAM : 32MB, Flash Memory : 128 MB
- Fingerprint Capacity : 3000
- Card Capacity : 30000
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusCPU : 32bit MIPS CPU
RAM : 32MB, Flash Memory : 128 MB
Fingerprint Capacity : 3000
Card Capacity : 30000
Event buffer : 100000
Manufacturer details
Published product details.
Technical Specifications
| CPU | 32bit MIPS CPU |
|---|---|
| RAM | 32MB, Flash Memory : 128 MB |
| Fingerprint Capacity | 3000 |
| Card Capacity | 30000 |
| Event buffer | 100000 |
| Power / Current | 12V +5A for Controller |
| Max 1A Wiegand Reader Port | 4ea (26/34 bit Wiegand, 4/8bit for PIN RS485) |
| Reader Port | 1no. extended RS485 Port |
| Communication | RS485 , TCP/IP |
| Baud Rate | 38,400bps (recommended) / 9600bps ,19,200 bps ,57,600 bps (selectable) |
| Input Port | 8ea (exit button #1 ,exit button #2 ,button #3 ,button #4 ,Door Sensor #1 ,Door Sensor #2 ,Door Sensor#3 ,Door Sensor #4) |
| Supports | F12 (RS 485) Fingerprint Reader |
Features
| Supports | eSSL 5000 / 7500 for fingerprint registration |
|---|
- 256 time Zones, 256 access levels
- Anti-passback function
- It can be installed easily on your network also support TCP/IP and RS485 communication
- 1/2/4 Door models can be mixed and matched in an optimised System Architecture
- Data is preserved if power is lost, Controller continues to operate if data connection is interrupted
- Interlock function , Linkage function - Multi-Card opening function, Remote door opening & closing
- Real-Time monitoring via web browser
- Video server integration
- 4 auxiliary input may be connected to infrared body detectors,fire alarms, smoke detectors etc.
- 4 auxiliary output may be connected to alarms,cameras, door bells etc
Software and Database Supported
| (1) Biosecurity 3.1.0.0(Web Version) database | - PGSQL / MS SQL |
|---|---|
| (2) Access Security System 3.5 (Desktop Version) Database Type | - MS Access / MS SQL |
