Choose the configuration.
Confirm the model and any optional features listed in the manufacturer catalog.

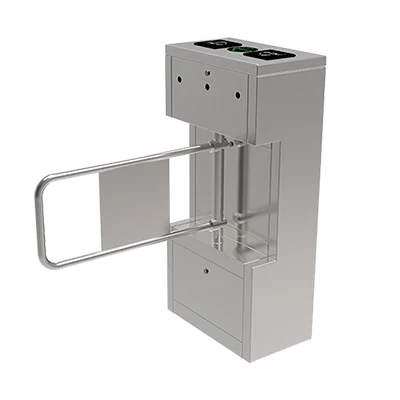

Smart Bio NexusSB-TL-129 · eSSL
eSSL · Swing barriers
SB-TL-129
Explore eSSL swing barriers for controlled pedestrian access.
- Passage width (Max) : ≤ 550mm
- Throughput rate : 30 p/m
- New Weight(Including Bars):40kg
- Dimension excluding bars:800 X 480 X 980MM
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusPassage width (Max) : ≤ 550mm
Throughput rate : 30 p/m
New Weight(Including Bars):40kg
Dimension excluding bars:800 X 480 X 980MM
Manufacturer details
Published product details.
Technical Specifications
| Passage width (Max) | ≤ 550mm |
|---|---|
| Throughput rate | 30 p/m |
| Power supply | 100 ~ 240V |
| Operational voltage | 24V |
| Max Power Consumption | 30 W |
| Frequency | 50 ~ 60hz |
| Protection Level (IP) | 54 |
| Working temperature | -25°C ~ +70°C |
| Electro - magnetic drive | DC |
| Dimension excluding bars | 800 X 480 X 980 mm |
| New Weight (Including Bars) | 40kg |
Features
- Use IC cards, ID cards, bar code or magnetic cards as automatic identification system
- Display has been in use for statistics and numbers With voice and strobe light alerts
- A combination of infrared sensors and police anti-illegal entry into pedestrian access
- Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping
- The barrier can be set to delay closing in 1 ~ 60s after a valid card reading
- Single passage in the set direction
- Bi-directional single passage
- Plastic toughened glass
- Always free or locked
Product information: eSSL manufacturer reference.
Smart Bio Nexus · Chennai
Plan your installation.
Share your site requirements. We’ll help you check the product configuration, supporting accessories and setup.
Check the installation.
Discuss placement, power, connectivity and compatibility for your site.
Arrange support.
Ask Smart Bio Nexus about installation, configuration and ongoing service.
