Smart Bio NexuseBS-5030A-N · eSSL
eSSL · Baggage scanners

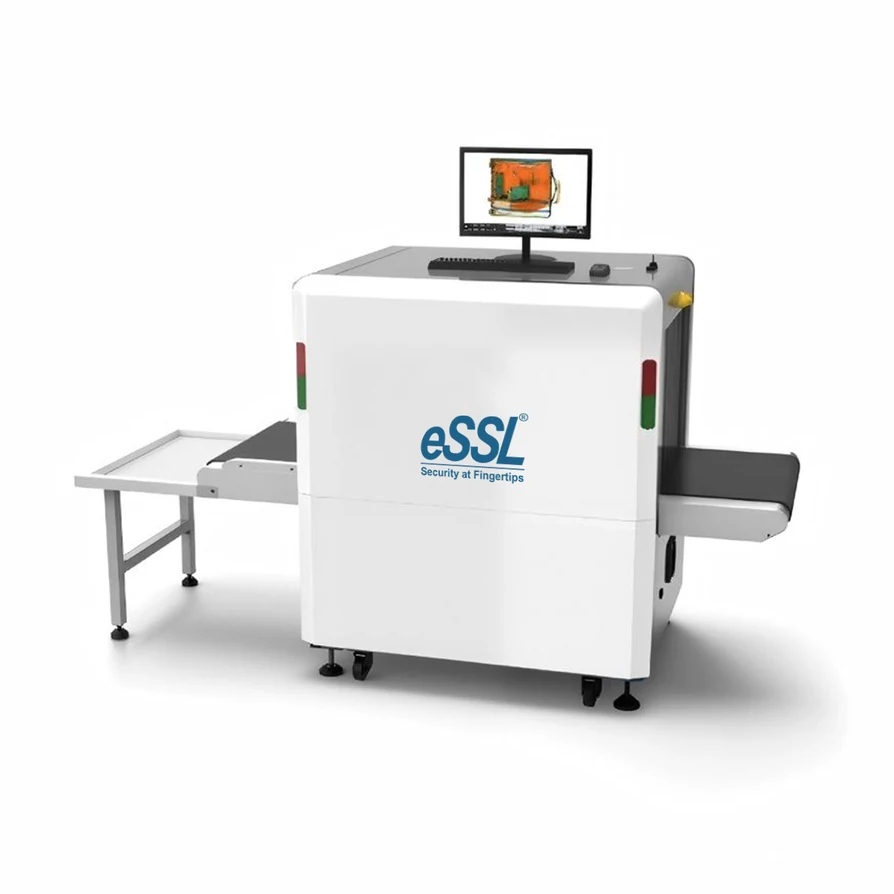

eBS-5030A-N
Explore eSSL baggage screening equipment and compare published specifications.
- Channel size: 500mm*300mm (width*height)
- Device size: 1475mm*784mm*1100mm (length*width*height)
- Line resolution: AWG38(Φ0.102mm)
- Spatial resolution: 1.0mm horizontal; 1.0mm vertical
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusChannel size: 500mm*300mm (width*height)
Device size: 1475mm*784mm*1100mm (length*width*height)
Line resolution: AWG38(Φ0.102mm)
Spatial resolution: 1.0mm horizontal; 1.0mm vertical
Force of penetration: 12mmsteel plate
X radiographic source: 80KV-100KV 0.5mA
Manufacturer details
Published product details.
Product Parameters
| Channel size | 500mm*300mm (width*height) |
|---|---|
| Device size | 1475mm*784mm*1100mm (length*width*height) |
| Line resolution | AWG38(Φ0.102mm) |
| Spatial resolution | 1.0mm horizontal; 1.0mm vertical |
| Force of penetration | 12mmsteel plate |
| X radiographic source | 80KV-100KV 0.5mA |
| Radiation dose - Leakage dose | < 0.5µSv 50mm from the device housing |
| Radiation dose - Single dose | < 5µGy/h |
| Conveyor height | 660mm (belt height from ground) |
| Line speed | 0.22 m/s |
| Display size | 21.5“ |
| Resolution ratio | 1920*1080P |
| Power dissipation | 500W |
| Source | AC220V 50Hz |
| Noise | < 55dB (1 meter from the device) |
| Working temperature and humidity | 5℃~40℃10%~90% no condensation |
| Storage temperature and humidity | -20℃~40℃ 0~90% no condensation |
| Weight of equipment | 220kg |
Product Features
| Modular | The internal circuit structure of the equipment adopts modular design, and improves the anti-interference ability of the equipment through reasonable layout design, ensures the stable operation of the equipment, and facilitates maintenance; |
|---|---|
| Digitalization | The hardware system employs the latest ASIC full-digital solution design with In-depth deep acquisition technology. Compared to analog acquisition solutions, it optimizes circuit design, featuring high integration, strong anti-interference capability, and clear imaging effects. |
| Full functionality | Customizable modules can be added based on customer needs, with ports opened for customization. For example, AI-powered image recognition (dangerous goods alarm function). |
Device Features
| Image processing features | color/black and white, local enhancement, high contrast, low contrast, super enhancement, organic matter removal, inorganic matter removal, color reversal, brightness enhancement, dark reduction, grayscale, enlargement, pseudo color, image restoration, image storage. |
|---|---|
| System features | Power-on self-test, multi-level user management, image management, TIP management, curve diagnostics, keyboard diagnostics, device information queries, multi-format image export, OSD operation functions, image mirroring, 1-64x stepless zoom, magnifying glass, operator training, precise packet image localization, channel reminder clearing, remote operation software, and one-touch shutdown. |
Product information: eSSL manufacturer reference.
