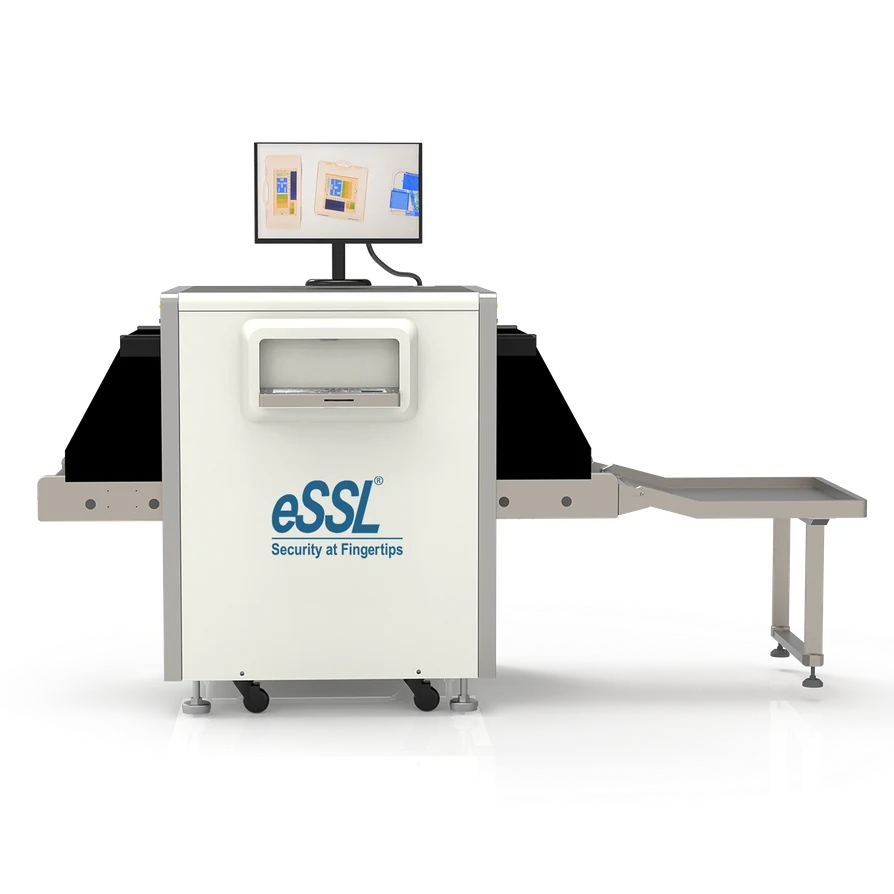

eBS6040C

Explore eSSL baggage screening equipment and compare published specifications.

Features and Benefits
Tunnel Size : 600 (W) × 400 (H) mm
Conveyor Speed : 0.22m/s
Conveyor Max Load : 150 kg

Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.

Special features Product details Installation help

Product highlights

A closer look at the features.

Smart Bio Nexus

Features and Benefits

Tunnel Size : 600 (W) × 400 (H) mm

Conveyor Speed : 0.22m/s

Conveyor Max Load : 150 kg

Manufacturer details

Published product details.

GENERAL SPECIFICATIONS

Tunnel Size	600 (W) × 400 (H) mm
Conveyor speed	0.22m/s
Conveyor Max Load	150 kg
Single inspection dosage	< 1.0μGy
Leakage radiation	< 0.06μGy/h
Wire Resolution	40AWG (0.0787mm metal line)
Steel Penetration	39mm
Film Safety	For ISO 1600
Radiation levels at 5 cm from the outer surface of the equipment	< 0.06μGy/h

OPERATING ENVIRONMENT

Operating temperature	0°C~ 45°C/20% ~ 95% (Non-condensing)
Storage temperature	-20°C~ 60°C/20% ~ 95%(Non-condensing)
Relative Humidity	20 to 95% non-condensing
System power	220VAC (+10%) 50+3HZ
RPower wastage	1.0 KM (Max) Noise < 58DB
X-RAY Sensor	L-shaped array detector, 24bit

X-ray GENERATOR

Orientation	Upward
Tube Current	0.6-1.0mA (adjustable)
Anode voltage	160KV
Angle	80 °
Generator cooling/working periods	sealed oil bath with forced air/100%
Number of X-ray tubes in the equipment	1

OPERATING ENVIRONMENT

Storage Temperature	-20°C to 60°C
Operating Temperature	0°C to 45°C
Relative Humidity	20 to 95% non-condensing
System Power	220 VAC (±10%) 50+3HZ
Power wastage	1.0 KW (Max)
Noise	< 65DB

IMAGE PERFORMANCE SYSTEM

Display	High-resolution 19 inch color LCD display
Color quality	24-Bit real colors based on materials
Edge enhancement	Object contour edge is more distinct
Super image enhancement	Image detail is more distinct
High penetration	display Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly.
Low penetration display	Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Magnifier	Partial magnifying function
Brightening/dimming	Increase/Decrease brightness of image
DImage recurrence	Display the previous twenty images and process any one of them
Image restoration	Restore image to initial status
Image storage	Real-time store any image and process it in operation status

SPECIAL FEATURES

Network interface	Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray	Ray is transmitted under automatic control, avoiding the error
One-key shutdown control	Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye	Capable of expediently observing the magnifying area
Self-diagnosis function	Give message automatically if malfunction for prompt maintenance

CE /IEC certificate or country of origin certificate or equivalent mentioning model name of applied equipment : CE EN ISO 12100:2010

X-RAY SENSOR

L-shaped array detector, 24bit Dual energy

MULTI-ENERGY

High/low energy	Switch from high energy to low energy

COLOR MATERIAL IDENTIFICATION

Color material identification	Organic objects in orange, inorganic objects in blue, mixture in green

Product information: eSSL manufacturer reference.

Smart Bio Nexus · Chennai

Plan your installation.

Share your site requirements. We’ll help you check the product configuration, supporting accessories and setup.

Choose the configuration.

Confirm the model and any optional features listed in the manufacturer catalog.

Check the installation.

Discuss placement, power, connectivity and compatibility for your site.

Arrange support.

Ask Smart Bio Nexus about installation, configuration and ongoing service.

Explore the category

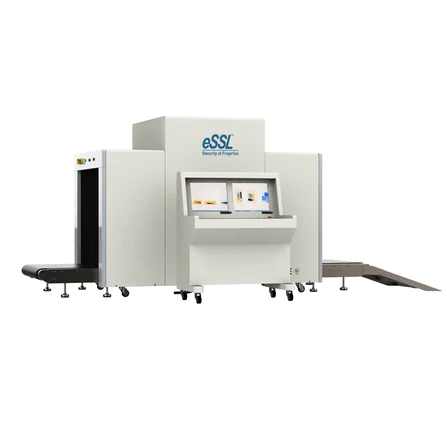

More baggage scanners.
