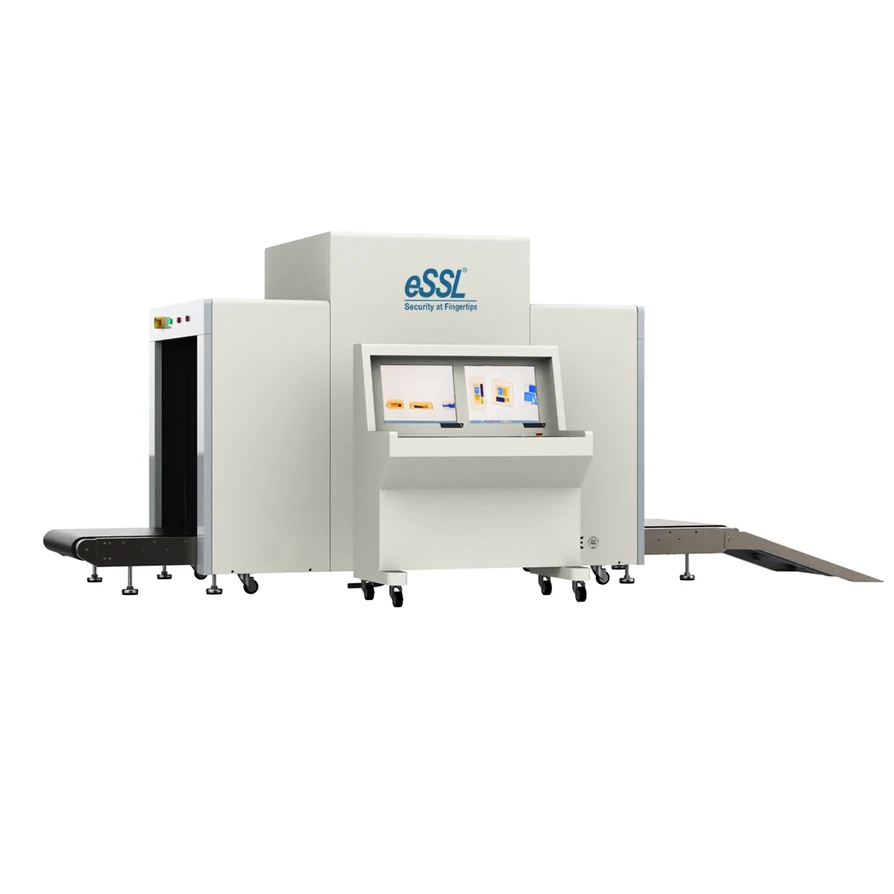

Smart Bio NexuseBS100100C · eSSL
eSSL · Baggage scanners
eBS100100C
Explore eSSL baggage screening equipment and compare published specifications.
- Features and Benefits
- Tunnel size : 1000(W) X 1000(H) mm
- Conveyor speed : 0.22m/s
- Conveyor max load : 300 kg
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusFeatures and Benefits
Tunnel size : 1000(W) X 1000(H) mm
Conveyor speed : 0.22m/s
Conveyor max load : 300 kg
Manufacturer details
Published product details.
Technical Specifications
| Tunnel size | 1000(W) X 1000(H) mm |
|---|---|
| Conveyor speed | 0.22m/s |
| Conveyor max load | 300 kg |
| Single inspection dosage | < 1.6Gy |
| Leakage radiation | < 3.0 Gy/h |
| Wire resolution | 38AWG |
| Steel penetration | 38mm |
| Film safety | For ISO 1600 |
OPERATING ENVIRONMENT
| Operating temperature | 0°C~ 45°C/20% ~ 95% (Non-condensing) |
|---|---|
| Storage temperature | -20°C~ 60°C/20% ~ 95%(Non-condensing) |
| Relative Humidity | 20 to 95% non-condensing |
| System power | 220VAC (+10%) 50+3HZ |
| RPower wastage | 1.0 KM (Max) Noise < 58DB |
| X-RAY Sensor | L-shaped array detector, 24bit |
SPECIAL FEATURES
| Network interface | Capable of connecting to LAN, and support multi-terminal check for baggage at same time. |
|---|---|
| Safety ray | Ray is transmitted under automatic control, avoiding the error. |
| One-key shutdown control | Just rotate the key to shut down the machine; it is safety, easy and convenient. |
| Eagle eye | Capable of expediently observing the magnifying area |
| Self-diagnosis function | Give message automatically if malfunction for prompt maintenance. |
X- RAY GENERATOR
| Orientation | Downward; |
|---|---|
| Tube current | 1.0~1.5MA (adjustable); |
| Anode voltage | 150-200KV; |
| X-ray divergence angle | 80°; |
| Cooling | Sealed oil bath with forced air; |
| Generator cooling/working periods | Sealed oil bath with forced air/100% |
| Color quality | 24 - Bit real colors based on materials; |
| Contrast sensitivity | 24 Visible levels, 4096 gray level; |
| High penetration display | Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly; |
| Low penetration display | increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly. |
| Image storage | 100,000 pictures in real time (can be customized) |
| Zoom | 64 Time enlarge, whole screen continuous observation. |
- 2* 19’’ High resolution LCD monitor;
- Edge enhancement --- The edge of image is more clear;
- Zoom in/ Zoom out --- make the image bigger make the image smaller ;
- Display the previous twenty images and process any one of them; Restore image to initial status;
- Brighter/ darker --- Make image more bright /make image darker;
- Reply --- Playback all images on the screen at current.
- Used for scenic spots, gymnasium, expo centre, left-baggage counter, supermarket, hotel, court, prison..etc; Machine parts safeguard measures;
- High performance network function;
- Public security testing;
- eBS100100 X-ray safety detection equipment can display pseudo color and black and white images, with simple and efficient operation, with reasonable human design. We provide a fully intelligent and secure inspection system for your customers.
