Smart Bio NexuseBS-5030A · eSSL
eSSL · Baggage scanners

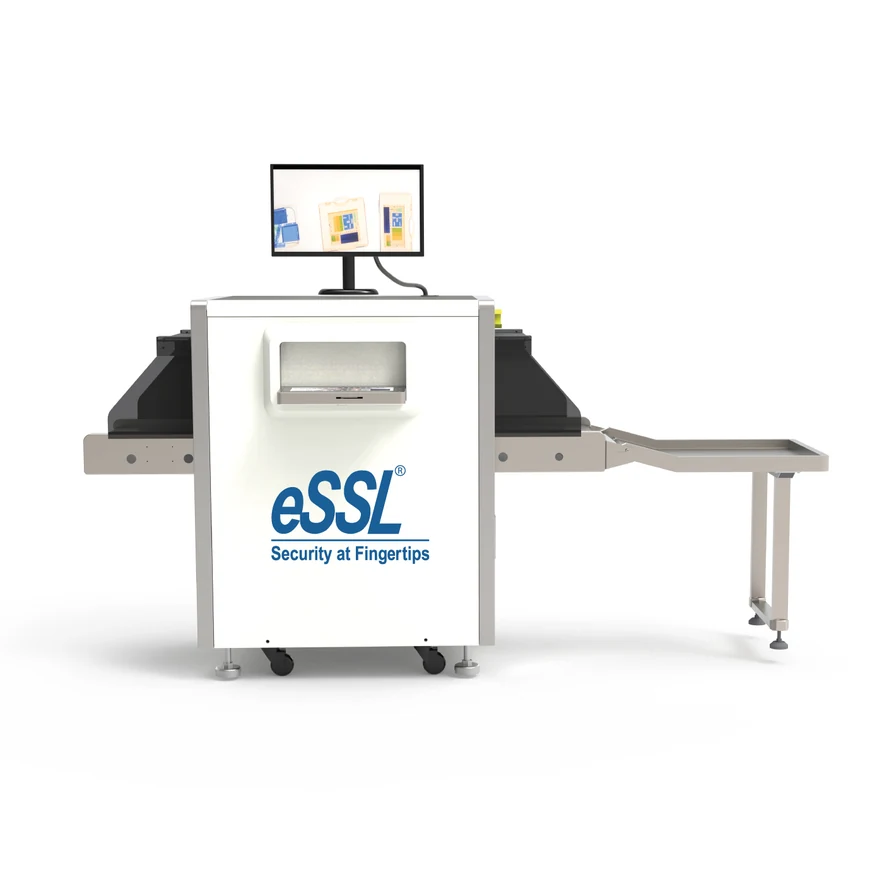

eBS-5030A
Explore eSSL baggage screening equipment and compare published specifications.
- Features and Benefits
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusFeatures and Benefits
Manufacturer details
Published product details.
Scan output Preview
- Color management architectures Different color, different matter;
- Inverse. white/black/colorized For comparing these images to find the suspected dangerous goods;
- To eliminate organic. Inorganic out ln view of the most important image;
- Edge enhancement The edge of image is more clear;
- High penetration Make the image more through, to look every goods in one image;
- Zoom in/zoom out Make the image bigger, make the image smaller;
- times size of image Make image back to 1 times size of image;
- Brighter/darker Make image more bright /make image darker;
- Replay Playback all images on the screen at current, be able to do the next steps
Description
| Orientation | Upward; |
|---|---|
| Tube Current | 0.6mA; |
| Anode voltage | 80KV X ray Generator (adjustable）; |
| X-ray divergence angle | 60 °; |
| Generator cooling/working periods | sealed oil bath with forced air/100%; |
| Single Direction | Bidirectional (IN /Out Optional & amp; customized) |
| Image Output | Color/BW, Negative, High/Low penetration, Organic /Inorganic |
| Accessories | 19 Inch LCD Monitor, Foldable Keyboard, Baggage Collection Tray & amp; Tool kit |
| Product Weight | 410Kg |
| Package Dimension | 1810*910*1450 |
- Single-Energy, L-shaped array detector
- Display date/time baggage counter User ID number
- One-key shutdown control, Just rotate the key to shut down the machine; it is safe, easy, and convenient
- High-resolution PHILIP 19-inch color LCD display
- X-ray sensor—L-type photodiode array detector (energy), 24-bit depth
- Image Storage—100,000 pictures in real time (can be customized)
- Windows based operating system
General Specifications
| Tunnel Size | 500 (W) ×300 (H) mm |
|---|---|
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 150 kg |
| Single inspection dosage | < 1.32μGy |
| Leakage radiation | < 0.06μGy/h |
| Wire Resolution | 40 AWG(0.0787mm metal line) |
| Steel Penetration | 10mm |
| Film Safety | For ISO 1600 |
| Storage Temperature | -20°C to 60°C |
| Operating Temperature | 0°C to 45°C |
X Generator
| Orientation | Upward |
|---|---|
| Tube Current | 0.4~0.7MA (adjustable) |
| Anode voltage | 80KV (adjustable) |
| X-ray divergence angle | 60 ° |
| Generator cooling/working periods | sealed oil bath with forced air/100% |
| X-RAY SENSOR | L-shaped array detector, 24bit |
Operating Environment
| Storage Temperature | -20°C to 60°C |
|---|---|
| Operating Temperature | Operating Temperature |
| Relative Humidity | 20 to 95% non-condensing |
| System Power | 220 VAC (±10%) 50 ±3HZ |
| Power wastage | 1.0 KW (Max) |
| Noise | < 65DB |
Special Features
| Network interface | Capable of connecting to LAN, and support multi-terminal check for baggage at same time |
|---|---|
| Safety x-ray | X-ray is transmitted under automatic control, avoiding the error; One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenien |
| Eagle eye | Capable of expediently observing the magnifying area Self-diagnosis function: Give mess automatically if malfunction for prompt maintenance |
