Smart Bio NexuseBS6550C · eSSL
eSSL · Baggage scanners

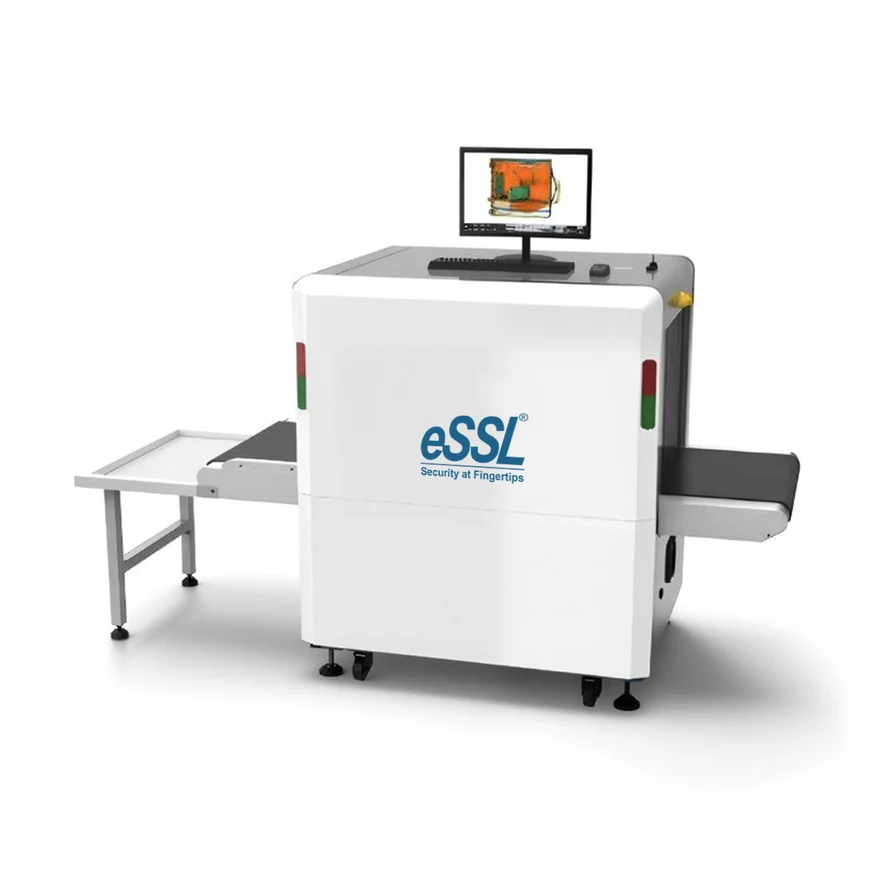

eBS6550C
Explore eSSL baggage screening equipment and compare published specifications.
- Channel size: 650mm*500mm (width*height)
- Device size: 1876mm*934mm*1300mm (length*width* height)
- Leakage dose: < 0.5µSv 50mm from the device housing
- Single dose: < 5µGy/h
Authorised eSSL channel partner · Chennai
Ask us about configuration, installation and service.
Product highlights
A closer look at the features.
Smart Bio NexusChannel size: 650mm*500mm (width*height)
Device size: 1876mm*934mm*1300mm (length*width* height)
Leakage dose: < 0.5µSv 50mm from the device housing
Single dose: < 5µGy/h
Conveyor height: 660mm (belt height from ground)
Line speed: 0.22 m/s
Manufacturer details
Published product details.
Outline dimension
| Channel size | 650mm*500mm (width*height) |
|---|---|
| Device size | 1876mm*934mm*1300mm (length*width* height) |
Radiation dose
| Leakage dose | < 0.5µSv 50mm from the device housing |
|---|---|
| Single dose | < 5µGy/h |
Conveyor Parameters
| Conveyor height | 660mm (belt height from ground) |
|---|---|
| Line speed | 0.22 m/s |
Display Parameters
| Display size | 21.5“ |
|---|---|
| Resolution ratio | 1920*1080P |
Performance parameter
| Line resolution | AWG38(Φ0.102mm) |
|---|---|
| Spatial resolution | 1.0mm horizontal; 1.0mm vertical |
| Force of penetration | 40mm steel plate |
| X radiographic source | 140KV-160KV 0.5mA-1.25mA |
Machine parameter
| Power Consumption | 500W |
|---|---|
| Source | AC220V 50Hz |
| Noise | < 55dB (1 meter from the device) |
| Working temperature and humidity | 5℃~40℃ 10%~90% Non–Condensing |
| Storage temperature and humidity | -20℃~40℃ 0~90% Non–Condensing |
| Weight of equipment | 300 Kg |
Product information: eSSL manufacturer reference.
